Chicago Hardware USA Drop Forged Ring Bolts - Screw Thread
Chicago Hardware USA Drop Forged Ring Bolts - Screw Thread
SKU:WIR-a5807e
Chicago Hardware USA Drop Forged Ring Bolts for durable wire rope attachments. Hot galvanized finish for lasting performance.
Regular price
$59.99
Regular price
Sale price
$59.99
Unit price
per
Initiate Order
Chicago Hardware USA Drop Forged Ring Bolts - Screw Thread
$59.99
Quantity: 1
Claim Your Seller Account
Chicago Hardware USA Drop Forged Ring Bolts - Screw Thread
$59.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.
Upgrade your wire rope assemblies with Chicago Hardware's USA-made Drop Forged Ring Bolts. These hot galvanized finish eye bolts are designed for durability and secure attachments. With a shank length of 2-1/4" and an overall length of 5-1/2", these bolts are built to last. Please note that these ring bolts are welded and not suited for lifting applications.

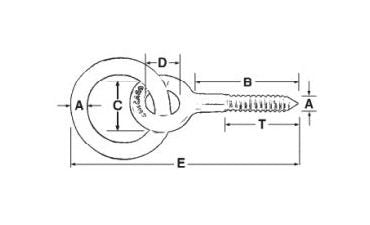

Product Specifications
Specifications Diameter A Shank Length B
5/16" x 2-1/4"
Specifications Id Eye Of Bolt D
5/8"
Specifications Id Eye Of Ring
2"
Specifications Od Eye Of Bolt C
1-1/4"
Specifications Overall Length E
5-1/2"
Specifications Thread Length T
1-5/8" "
Specifications Wt Per 100 Pcs Lbs
25.9
CAGE
0T9L4
NAICS
332722
PSC
5306
