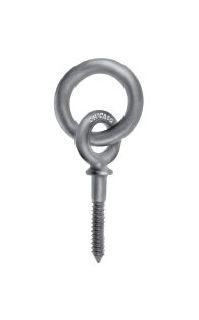

Chicago Hardware USA Drop Forged Ring Bolts Shoulder - Screw Thread Eye Bolts
Chicago Hardware USA Drop Forged Ring Bolts Shoulder - Screw Thread Eye Bolts
SKU:WIR-848846
Premium USA-made drop forged ring bolts for secure cable assembly attachment. Not for lifting applications.
Regular price
$299.99
Regular price
Sale price
$299.99
Unit price
per
Initiate Order
Chicago Hardware USA Drop Forged Ring Bolts Shoulder - Screw Thread Eye Bolts
$299.99
Quantity: 1
Claim Your Seller Account
Chicago Hardware USA Drop Forged Ring Bolts Shoulder - Screw Thread Eye Bolts
$299.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.
Upgrade your wire rope hardware with Chicago Hardware & Fixture Company's premium drop forged ring bolts and screw thread eye bolts. Made in the USA, these industrial-grade bolts feature hot galvanized finish, ensuring durability and corrosion resistance. The ring bolts, although welded, are not intended for lifting applications. With precise specifications and sturdy construction, these bolts are ideal for securing cable assemblies in various settings.

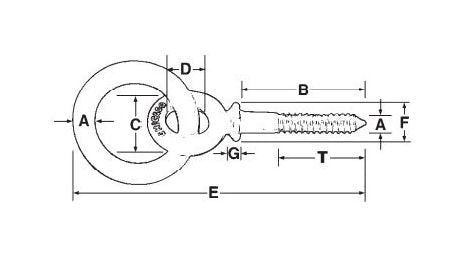

Product Specifications
Specifications Diameter A Shank Length B
3/8" x 2-1/2"
Specifications Id Eye Of Bolt D
3/4"
Specifications Id Eye Of Ring
2-1/2"
Specifications Od Eye Of Bolt C
1-1/2"
Specifications Outside Shoulder F
11/16"
Specifications Overall Length E
6-1/2"
Specifications Thickness At Shoulder G
1/8"
Specifications Thread Length T
1-3/4" "
Specifications Wt Per 100 Pcs Lbs
45.8
CAGE
0T9L4
NAICS
332722
PSC
5306
