Chicago Hardware Zinc Plated Turned Eye Bolts - Machine Threads

Name: Chicago Hardware Zinc Plated Turned Eye Bolts - Machine Threads
Brand: Lexco Cable Manufacturing
SKU: WIR-c8e88a
Price: 45.99 USD
Availability: OutOfStock

SKU:WIR-c8e88a

Chicago Hardware's Zinc Plated Eye Bolts: welded for strength, ideal for secure cable connections, WLL of 240 lbs

$45.99

Sale

Quantity

Delivery via Maden

Expect your order to arrive on time.

Secure Payments

All orders are processed through a secure, PCI-compliant checkout.

View full details

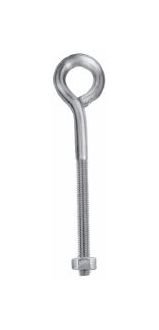

The Zinc Plated Turned Eye Bolts by Chicago Hardware excel in durability and performance. Featuring resistance-welded closed eyes, these bolts are ideal for secure cable attachments. With specifications meeting institutional standards, including a 240 lbs WLL, they are a reliable choice for various applications.

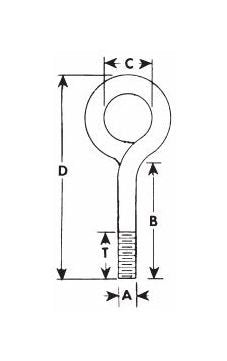

Product Specifications

Specifications Id Eye C

5/8"

Specifications Oal D

3-5/8"

Specifications Shank Length B

2-1/2"

Specifications Stock

F-3W

Specifications Thread Diameter A

5/16"-18

Specifications Thread Length T

1-1/4" "

Specifications Wll Lbs

240

Specifications Wt Per 100 Pcs Lbs

CAGE

0T9L4

NAICS

332722

PSC

5306
