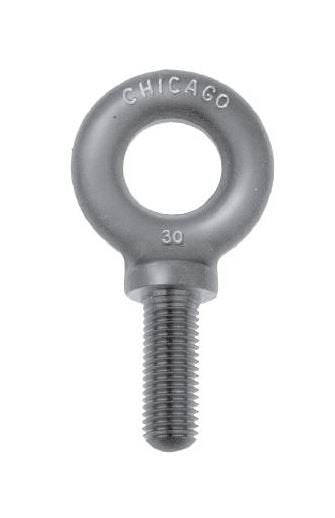

Chicago Machinery Eye Bolt Standard Shank Lengths Shoulder Pattern
Chicago Machinery Eye Bolt Standard Shank Lengths Shoulder Pattern
SKU:WIR-3b21a2
Chicago Machinery Eye Bolt for secure wire rope fastening. Made in the USA, meets industry standards.
Regular price
$24.99
Regular price
Sale price
$24.99
Unit price
per
Initiate Order
Chicago Machinery Eye Bolt Standard Shank Lengths Shoulder Pattern
$24.99
Quantity: 1
Claim Your Seller Account
Chicago Machinery Eye Bolt Standard Shank Lengths Shoulder Pattern
$24.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.

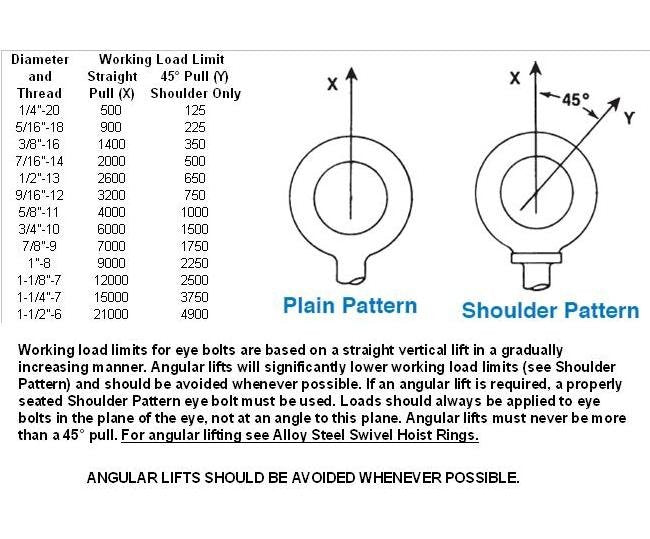

The Chicago Machinery Eye Bolt in Shoulder Pattern offers a reliable fastening solution for wire rope assemblies. With a Shank Length of 1", an I.D. Eye of 3/4", and a WLL of 500 lbs, this USA-made bolt ensures safety with a 5 to 1 safety factor. Designed for vertical loads, it guarantees precision and durability, meeting stringent industry standards.
Ready to Grow Without Cash Flow Constraints?
Product Specifications
Specifications Id Eye
3/4"
Specifications Max Lengths
3"
Specifications Od Eye
1-1/4"
Specifications Overall Length In
2-3/8"
Specifications Shank Dia Thread Size
1/4"-20
Specifications Shank Length
1"
Specifications Wll Lbs
500
CAGE
0T9L4
NAICS
332722
PSC
5306
