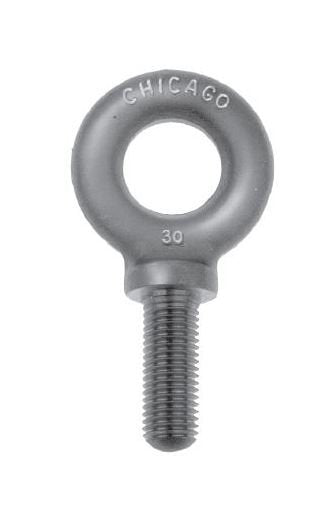

Chicago Machinery Eye Bolt Standard Shoulder 2-1/2"
Chicago Machinery Eye Bolt Standard Shoulder 2-1/2"
SKU:WIR-ba1083
High-strength Chicago Machinery Eye Bolt for secure cable assembly attachment. Made in the USA with 9000 lbs WLL.
Regular price
$29.99
Regular price
Sale price
$29.99
Unit price
per
Initiate Order
Chicago Machinery Eye Bolt Standard Shoulder 2-1/2"
$29.99
Quantity: 1
Claim Your Seller Account
Chicago Machinery Eye Bolt Standard Shoulder 2-1/2"
$29.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.
The Chicago Machinery Eye Bolt Standard Shank Lengths Shoulder Pattern is engineered for exceptional vertical load-bearing capacity, meeting stringent safety standards. Made in the USA by Chicago Hardware & Fixture Company, these eye bolts ensure secure cable assembly attachment. With a Shank Length of 2-1/2", WLL of 9000 lbs, and durable construction, they offer reliability and performance for a wide range of applications.
Product Specifications
Specifications Id Eye
1-13/16"
Specifications Max Lengths
5"
Specifications Od Eye
3-9/16"
Specifications Overall Length In
7"
Specifications Shank Dia Thread Size
1"-8
Specifications Shank Length
2-1/2"
Specifications Wll Lbs
9000
CAGE
0T9L4
NAICS
332722
PSC
5306
