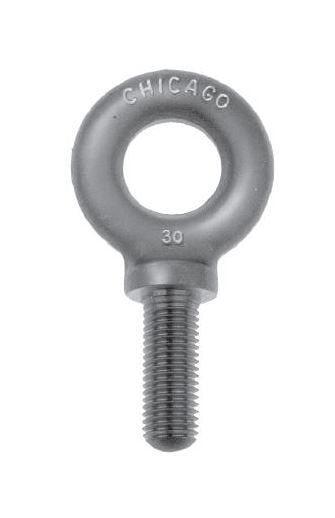

Chicago Machinery Eye Bolt with Standard Shank - Shoulder Pattern
Chicago Machinery Eye Bolt with Standard Shank - Shoulder Pattern
SKU:WIR-d5feb2
Chicago Machinery Eye Bolt with Standard Shank - High Strength & Precision-Engineered for Secure Cable Attachment
Regular price
$29.99
Regular price
Sale price
$29.99
Unit price
per
Initiate Order
Chicago Machinery Eye Bolt with Standard Shank - Shoulder Pattern
$29.99
Quantity: 1
Claim Your Seller Account
Chicago Machinery Eye Bolt with Standard Shank - Shoulder Pattern
$29.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.
The Chicago Machinery Eye Bolt with Standard Shank features a durable 2-1/4" shank length, capable of handling vertical loads up to 7000 lbs with a safety factor of 5 to 1. Made in the USA by Chicago Hardware & Fixture Company, this shoulder pattern eye bolt ensures secure attachment to cable assemblies, offering reliability and strength in diverse applications. Designed with a 7/8"-9 shank diameter and thread size, this eye bolt meets rigorous institutional procurement standards for quality and performance.
Ready to Grow Without Cash Flow Constraints?
Product Specifications
Specifications Id Eye
1-11/16"
Specifications Max Lengths
5"
Specifications Od Eye
3-1/4"
Specifications Overall Length In
6"
Specifications Shank Dia Thread Size
7/8"-9
Specifications Shank Length
2-1/4"
Specifications Wll Lbs
7000
CAGE
0T9L4
NAICS
332722
PSC
5306
