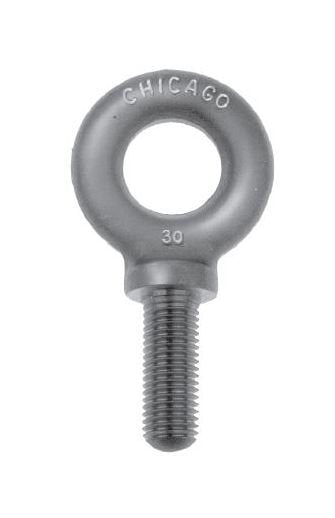

Chicago Machinery Eye Bolt with Standard Shank - Shoulder Pattern
Chicago Machinery Eye Bolt with Standard Shank - Shoulder Pattern
SKU:WIR-f665b3
Heavy-duty Chicago Machinery Eye Bolt with Standard Shank for secure vertical load handling. Made in USA for superior quality.
Regular price
$29.99
Regular price
Sale price
$29.99
Unit price
per
Initiate Order
Chicago Machinery Eye Bolt with Standard Shank - Shoulder Pattern
$29.99
Quantity: 1
Claim Your Seller Account
Chicago Machinery Eye Bolt with Standard Shank - Shoulder Pattern
$29.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.

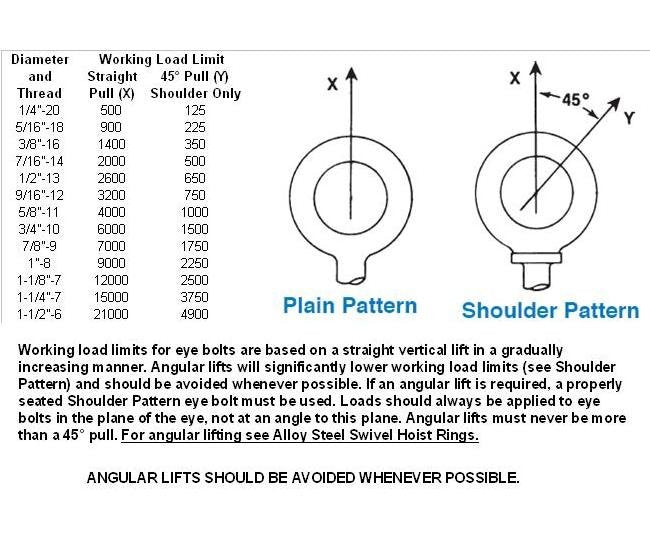

The Chicago Machinery Eye Bolt with Standard Shank Lengths in Shoulder Pattern is expertly crafted for heavy-duty applications. With a Shank Length of 1-3/4" and a high Working Load Limit of 4000 lbs, these bolts are designed for reliability and durability. Made in the USA by Chicago Hardware & Fixture Company, these eye bolts ensure top-notch quality and performance. Attach them securely to cable assemblies for superior vertical load handling, meeting safety factor standards of 5 to 1. Trust these precision-engineered bolts for your machinery needs.
Product Specifications
Specifications Id Eye
1-3/8"
Specifications Max Lengths
4-1/2"
Specifications Od Eye
2-1/2"
Specifications Overall Length In
4-7/8"
Specifications Shank Dia Thread Size
5/8"-11
Specifications Shank Length
1-3/4"
Specifications Wll Lbs
4000
CAGE
0T9L4
NAICS
332722
PSC
5306
