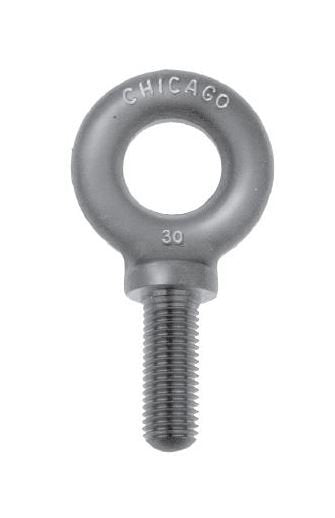

Chicago Machinery Eye Bolts Shoulder Pattern
Chicago Machinery Eye Bolts Shoulder Pattern
SKU:WIR-725492
Chicago Machinery Eye Bolts for secure heavy-duty cable assembly. Shank Length: 3-1/2", WLL: 21000 lbs. Quality guaranteed by Chicago Hardware & Fixture Co.
Regular price
$29.99
Regular price
Sale price
$29.99
Unit price
per
Initiate Order
Chicago Machinery Eye Bolts Shoulder Pattern
$29.99
Quantity: 1
Claim Your Seller Account
Chicago Machinery Eye Bolts Shoulder Pattern
$29.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.

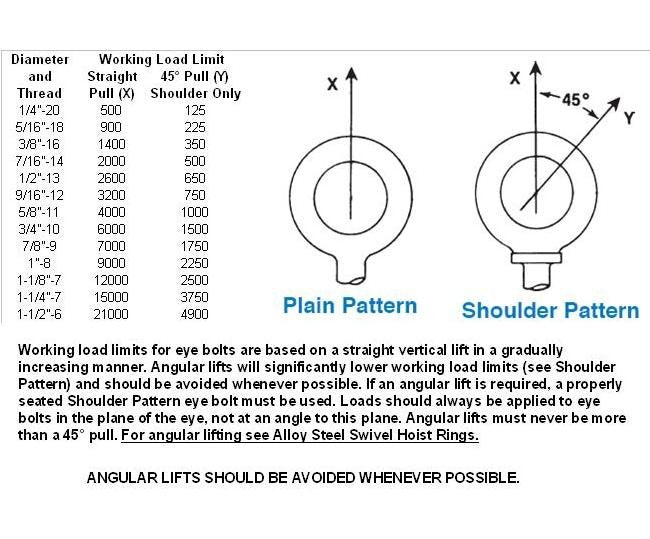

The Chicago Machinery Eye Bolts Shoulder Pattern are expertly crafted for heavy-duty cable assembly applications. With a Shank Length of 3-1/2", these bolts offer a robust Overall Length of 9-1/2" and a substantial Working Load Limit (WLL) of 21000 lbs. Designed with precise specifications including an I.D. Eye of 2-1/2" and an O.D. Eye of 5-3/16", these bolts ensure secure attachments for vertical loads, meeting stringent safety factors of 5 to 1. Chicago Hardware & Fixture Company guarantees quality and durability, with a maximum 10% variation allowance for special items, ensuring reliability in every application.
Product Specifications
Specifications Id Eye
2-1/2"
Specifications Max Lengths
3-1/2"
Specifications Od Eye
5-3/16"
Specifications Overall Length In
9-1/2"
Specifications Shank Dia Thread Size
1-1/2"-6
Specifications Shank Length
3-1/2"
Specifications Wll Lbs
21000
CAGE
0T9L4
NAICS
332722
PSC
5306
