Chicago Machinery Eye Bolts - Standard Shank Length
Chicago Machinery Eye Bolts - Standard Shank Length
SKU:WIR-43b29f
Heavy-duty Chicago Machinery Eye Bolts with 3" shank, 15000 lbs WLL, and USA-made quality for secure cable attachments.
Regular price
$29.99
Regular price
Sale price
$29.99
Unit price
per
Initiate Order
Chicago Machinery Eye Bolts - Standard Shank Length
$29.99
Quantity: 1
Claim Your Seller Account
Chicago Machinery Eye Bolts - Standard Shank Length
$29.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.

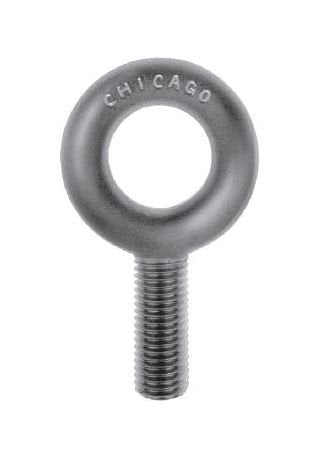

Upgrade your cable assemblies with Chicago Machinery Eye Bolts featuring a 3" shank length and a robust design for vertical loads up to 15000 lbs. Made in USA by Chicago Hardware & Fixture Company, these eye bolts ensure reliability and durability. With a 1-1/4"-7 shank diameter and thread size, they meet stringent industry standards for quality and performance.
Product Specifications
Specifications Id Eye
2-3/16"
Specifications Max Lengths
3"
Specifications Od Eye
4-7/16"
Specifications Overall Length In
7-7/16"
Specifications Shank Dia Thread Size
1-1/4"-7
Specifications Shank Length
3"

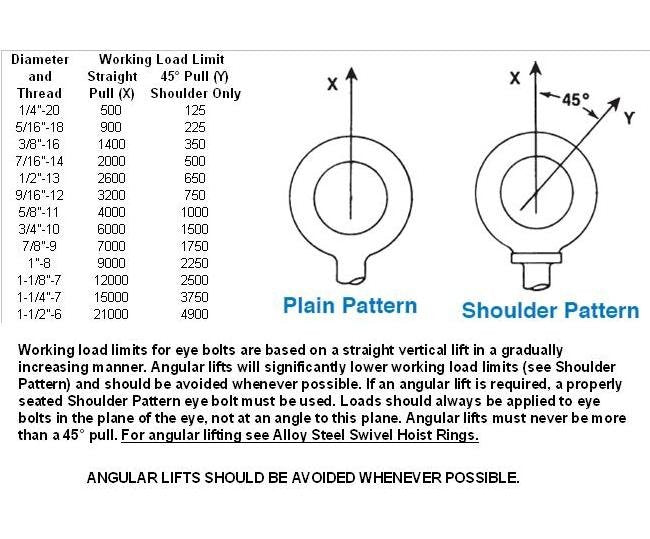

Specifications Wll Lbs
15000
CAGE
0T9L4
NAICS
332722
PSC
5306
