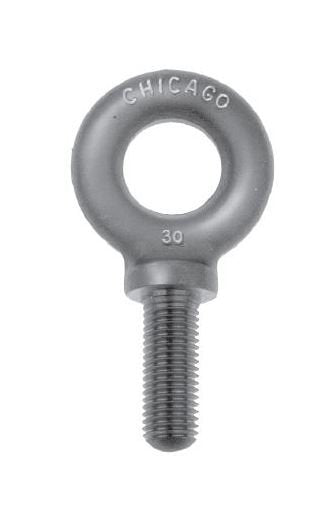

Chicago Machinery Eye Bolts Standard Shank Lengths Shoulder Pattern
Chicago Machinery Eye Bolts Standard Shank Lengths Shoulder Pattern
SKU:WIR-e5bfe0
Premium USA-made Chicago Machinery Eye Bolts for secure cable assembly attachment in demanding industrial settings.
Regular price
$29.99
Regular price
Sale price
$29.99
Unit price
per
Initiate Order
Chicago Machinery Eye Bolts Standard Shank Lengths Shoulder Pattern
$29.99
Quantity: 1
Claim Your Seller Account
Chicago Machinery Eye Bolts Standard Shank Lengths Shoulder Pattern
$29.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.

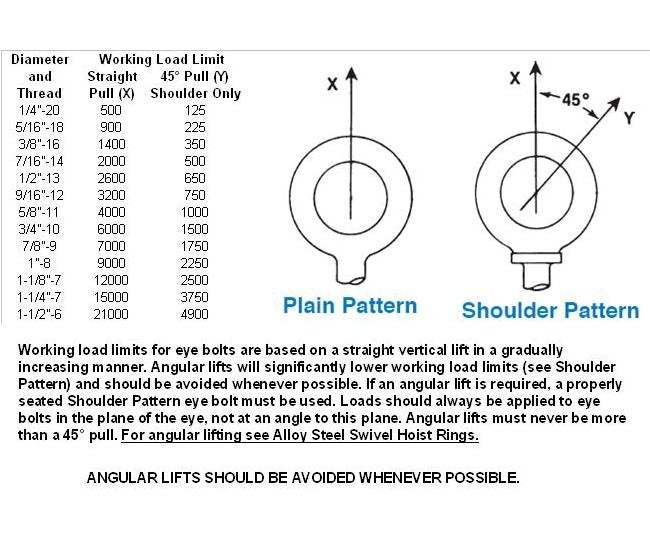

The Chicago Machinery Eye Bolts Standard Shank Lengths Shoulder Pattern are expertly crafted in the USA by Chicago Hardware & Fixture Company to meet the rigorous demands of industrial applications. With a Shank Length of 2 inches and a WLL of 6000 lbs, these eye bolts are designed for durability and reliability. The 3/4''-10 Shank Dia. & Thread Size ensures secure attachment to cable assemblies, offering peace of mind for vertical loads with a safety factor of 5 to 1.
Product Specifications
Specifications Id Eye
1-1/2"
Specifications Max Lengths
5"
Specifications Od Eye
2-13/16"
Specifications Overall Length In
5-1/4"
Specifications Shank Dia Thread Size
3/4"-10
Specifications Shank Length
2"
Specifications Wll Lbs
6000
CAGE
0T9L4
NAICS
332722
PSC
5306
