Chicago Machinery Eye Bolts with Standard Shank Lengths
Chicago Machinery Eye Bolts with Standard Shank Lengths
SKU:WIR-1cf7bc
Chicago Machinery Eye Bolts with Standard Shank Lengths - Designed for durability and high performance in industrial applications. Made in the USA.
Regular price
$29.99
Regular price
Sale price
$29.99
Unit price
per
Initiate Order
Chicago Machinery Eye Bolts with Standard Shank Lengths
$29.99
Quantity: 1
Claim Your Seller Account
Chicago Machinery Eye Bolts with Standard Shank Lengths
$29.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.

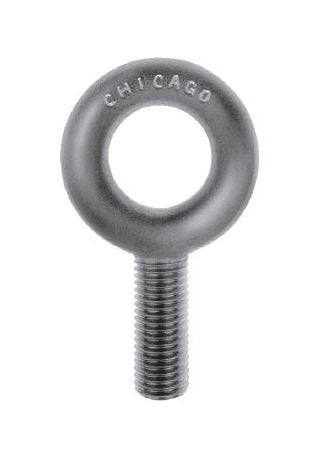

The Chicago Machinery Eye Bolts with Standard Shank Lengths in Plain Pattern are expertly crafted for reliable performance and durability. Made in the USA by Chicago Hardware & Fixture Company, these eye bolts feature a Shank Length of 1-5/8", I.D. Eye of 1-9/32", O.D. Eye of 2-9/32", and a Shank Diameter & Thread Size of 9/16"-12. With a Working Load Limit of 3200 lbs, these eye bolts are designed to meet the rigorous demands of industrial applications. Attach them to a cable assembly via the eye end or threaded end for secure anchoring and lifting solutions.
Product Specifications
Specifications Id Eye
1-9/32"
Specifications Max Lengths
4-1/2"
Specifications Od Eye
2-9/32"
Specifications Overall Length In
3-29/32"
Specifications Shank Dia Thread Size
9/16"-12
Specifications Shank Length
1-5/8"
Specifications Wll Lbs
3200
CAGE
0T9L4
NAICS
332722
PSC
5306
