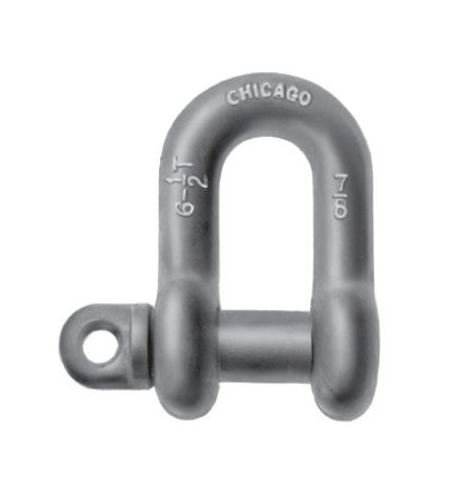

Chicago Screw Pin Galvanized Chain Shackle

Name: Chicago Screw Pin Galvanized Chain Shackle
Brand: Lexco Cable Manufacturing
SKU: WIR-590268
Price: 189.99 USD
Availability: OutOfStock

SKU:WIR-590268

Chicago Screw Pin Galvanized Chain Shackle - Durable, precision-marked drop forged shackle meeting Federal Specifications RR-C-271D Type IVA.

$189.99

Sale

Quantity

Delivery via Maden

Expect your order to arrive on time.

Secure Payments

All orders are processed through a secure, PCI-compliant checkout.

View full details

The Chicago Screw Pin Galvanized Chain Shackle from Chicago Hardware & Fixture Company combines robust construction with reliable performance. This drop forged shackle features a hot galvanized finish for enhanced durability. Precision-marked with size, working load limit, and trademark, it meets Federal Specifications RR-C-271D Type IVA. Perfect for lifting or towing applications, this shackle ensures safety with a 6 to 1 safety factor. Trust in the quality and compliance of this shackle for your wire rope hardware needs.

Product Specifications

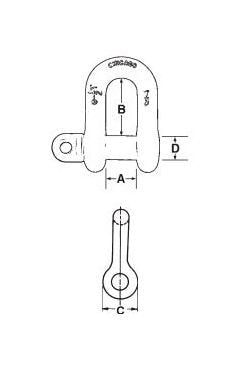

Specifications Length B

Specifications Length Tolerance

1/8"

Specifications Od Eyes C

1-5/8"

Specifications Pin Or Bolt Diameter D

3/4"

Specifications Size Dia

5/8"

Specifications Width A

1-1/16"

Specifications Width Tolerance

1/16"

Specifications Wll Tons

3-1/4

Specifications Wt Per 100 Pcs Lbs

132.5

CAGE

0T9L4

NAICS

332999

PSC

5340

Chicago Screw Pin Galvanized Chain Shackle
