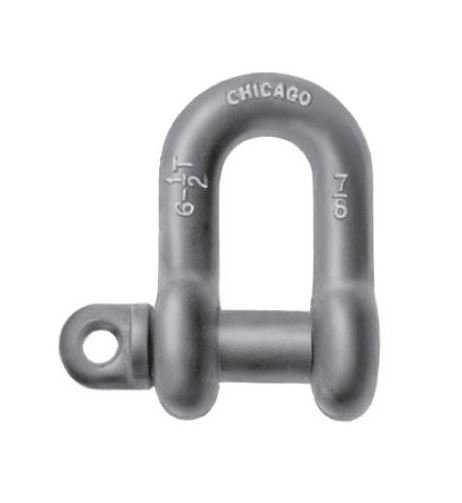

Chicago Screw Pin Galvanized Shackle
Chicago Screw Pin Galvanized Shackle
SKU:WIR-dfa15b
Chicago's durable Drop Forged Screw Pin Galvanized Shackle - compliant with federal standards, heat-treated for strength, and marked for easy identification.
Regular price
$179.99
Regular price
Sale price
$179.99
Unit price
per
Initiate Order
Chicago Screw Pin Galvanized Shackle
$179.99
Quantity: 1
Claim Your Seller Account
Chicago Screw Pin Galvanized Shackle
$179.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.
The Chicago Hardware & Fixture Company proudly offers its Drop Forged Screw Pin Galvanized Shackle, ensuring quality and durability for all your lifting and towing needs. This shackle is available with rust-preventative coatings upon request and is heat-treated for maximum strength. Meeting federal specifications RR-C-271D Type IVA, this shackle is marked with size, working load limit, and trademark for easy identification. With a safety factor of 6 to 1, this shackle guarantees reliable performance in various applications.

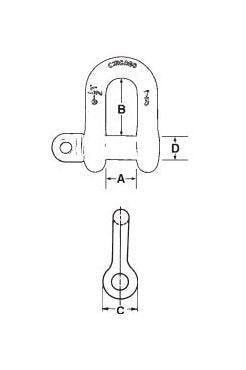

Product Specifications
Specifications Length B
2-5/16"
Specifications Length Tolerance
1/4"
Specifications Od Eyes C
1-7/8"
Specifications Pin Or Bolt Diameter D
7/8"
Specifications Size Dia
3/4"
Specifications Width A
1-1/4"
Specifications Width Tolerance
1/16"
Specifications Wll Tons
4-3/4
Specifications Wt Per 100 Pcs Lbs
212
CAGE
0T9L4
NAICS
332999
PSC
5340
