Chip Deflector Guard - 3.625" A x 1.750" B, Standard Steel, Hot Chip Protection

Name: Chip Deflector Guard - 3.625" A x 1.750" B, Standard Steel, Hot Chip Protection
Brand: Bermar Associates, Inc.
SKU: STA-2e67e6
Price: 49.99 USD
Availability: OutOfStock

SKU:STA-2e67e6

Protect machine ways with our durable 16 gauge steel Chip Deflector Guard. Ideal for hot chip applications, ensures machine longevity.

$49.99

Sale

Quantity

Delivery via Maden

Expect your order to arrive on time.

Secure Payments

All orders are processed through a secure, PCI-compliant checkout.

View full details

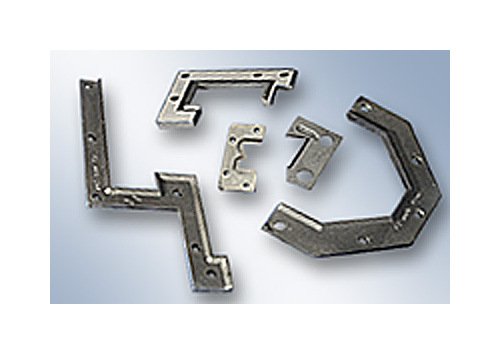

Safeguard your machinery with our Standard Chip Deflector Guard made of durable 16 gauge cold-rolled steel. Designed to protect machine ways and way wipers from metal chips, this deflector offers superior strength and is ideal for hot chip applications. Customizable to fit your specific requirements, it ensures reliable protection and easy installation. Perfect for industrial settings, this chip deflector enhances machine longevity and efficiency.

Product Specifications

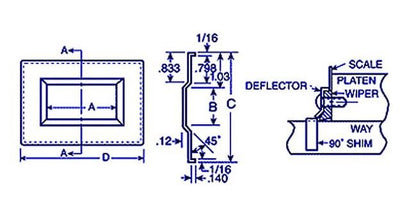

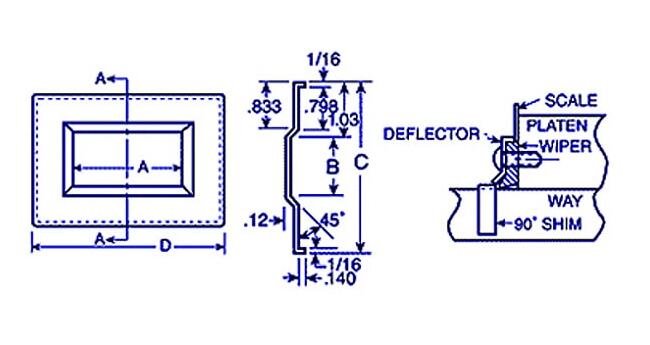

Mounting Instructions Mounting Instructions

Slide wiper into position.Place deflector over wiper.Insert all screws. Leave loose.Use 1/16 x 90Âº shim under lip of deflector.Use 6" scale. Apply pressure 90Âº leg of wiper. Hold deflector against 1/16 shim.Same procedure across top of wiper. Then around remaining sides. Remove shim.

Specifications Dimension A

3.625 in

Specifications Dimension B

1.750 in

Specifications Materials

Cold Rolled Steel (CRS)

Specifications Material Thickness

16 gauge
