Chip Deflector - Standard 3.875x1.625 in
Chip Deflector - Standard 3.875x1.625 in
SKU:STA-9d4d02
Enhance equipment longevity with our 16-gauge Cold Rolled Steel Chip Deflector, designed for precise fit and superior chip protection.
Regular price
$29.99
Regular price
Sale price
$29.99
Unit price
per
Initiate Order
Chip Deflector - Standard 3.875x1.625 in
$29.99
Quantity: 1
Claim Your Seller Account
Chip Deflector - Standard 3.875x1.625 in
$29.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.
The Standard Chip Deflector offers superior protection with its 16-gauge Cold Rolled Steel construction, preformed design for ideal way wiper fit, and hot chip application suitability. Serving as a sturdy stiffener, it shields machine ways and way wipers from metal chip damage. Customizable to additional size specs, with or without hole patterns, this deflector guarantees reliability and longevity in industrial settings.
Product Specifications

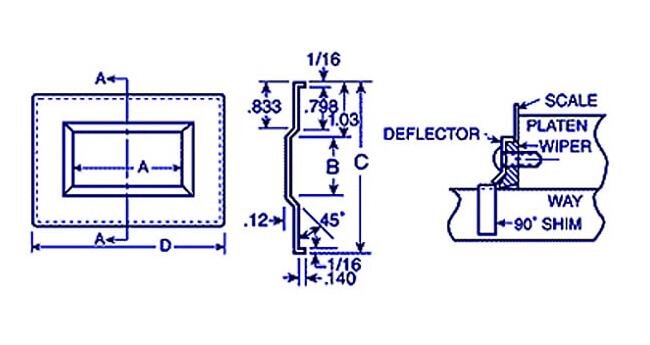

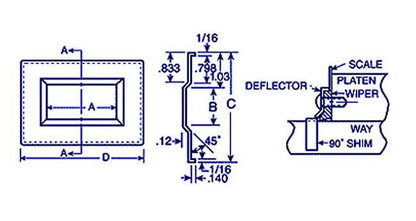

Mounting Instructions Mounting Instructions
Slide wiper into position.Place deflector over wiper.Insert all screws. Leave loose.Use 1/16 x 90º shim under lip of deflector.Use 6" scale. Apply pressure 90º leg of wiper. Hold deflector against 1/16 shim.Same procedure across top of wiper. Then around remaining sides. Remove shim.
Specifications Dimension A
3.875 in
Specifications Dimension B
1.625 in
Specifications Materials
Cold Rolled Steel (CRS)
Specifications Material Thickness
16 gauge
