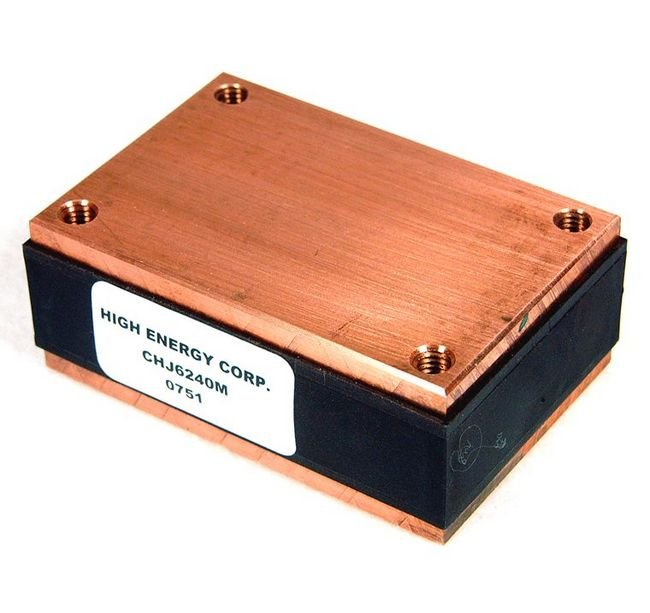

CHJ Series Metallized Film Capacitors - 600V, 0.66 µF
CHJ Series Metallized Film Capacitors - 600V, 0.66 µF
SKU:MET-cb9c6a
High-performance Metallized Film Capacitors - 600V, 0.66 µF - Ideal for demanding applications
Regular price
$49.99
Regular price
Sale price
$49.99
Unit price
per
Initiate Order
CHJ Series Metallized Film Capacitors - 600V, 0.66 µF
$49.99
Quantity: 1
Claim Your Seller Account
CHJ Series Metallized Film Capacitors - 600V, 0.66 µF
$49.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.
The CHJ Series Metallized Film Capacitors offer exceptional performance with a capacitance range of 0.18 to 5.0 µF, a maximum RMS voltage of 600V, and a maximum power of 210 kVA. These capacitors are designed to withstand high currents, making them ideal for series & parallel stacking applications. With conduction cooling and compact dimensions, they ensure reliable operation even in demanding environments. Meeting strict industry standards, these capacitors are a dependable choice for both consumer and institutional buyers.
Product Specifications
Specifications Cap
0.66 µF
Specifications Capacitance Range
0.18 to 5.0 µF Standard
Specifications Capacitance Tolerance
±10% Standard
Specifications Cooling Method
Conduction-cooled by bus bars

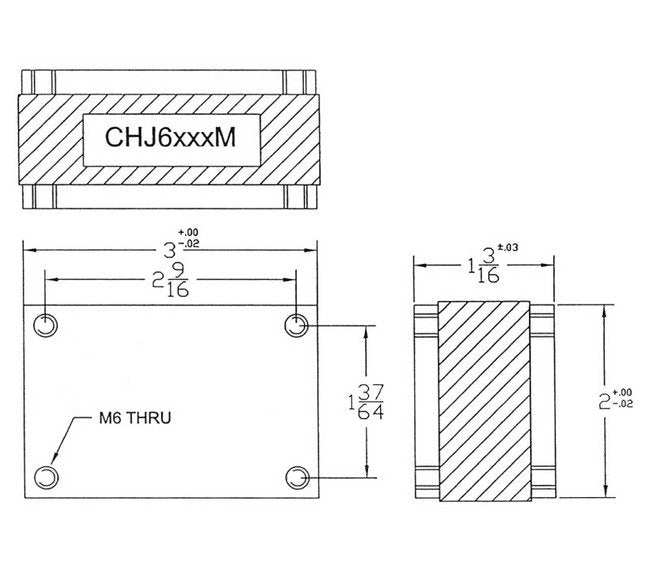

Specifications Dimensions
3 x 2 x 1 7/16 in | 76.2 x 50.8 x 36.5 mm
Specifications Dissipation Factor
0.1% Maximum
Specifications Fh
259 kHz
Specifications Fl
141 kHz
Specifications Fmax
500 kHz
Specifications Imax Rms
475 A
Specifications Operating Temperature
Up to +90 ºC
Specifications Smax
210 kV·A
Specifications Stray Inductance
Less than 5 nH
Specifications Vmax Rms
600 V
Specifications Weight
0.27 kg | 0.6 lb
