CHJ Series Metallized Film Capacitors - High Voltage & Power
CHJ Series Metallized Film Capacitors - High Voltage & Power
SKU:MET-4baa94
High-performance Metallized Film Capacitors with up to 700 VRMS Working Voltage & 210 kVA Max Power. Ideal for industrial & institutional applications.
Regular price
$49.99
Regular price
Sale price
$49.99
Unit price
per
Initiate Order
CHJ Series Metallized Film Capacitors - High Voltage & Power
$49.99
Quantity: 1
Claim Your Seller Account
CHJ Series Metallized Film Capacitors - High Voltage & Power
$49.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.

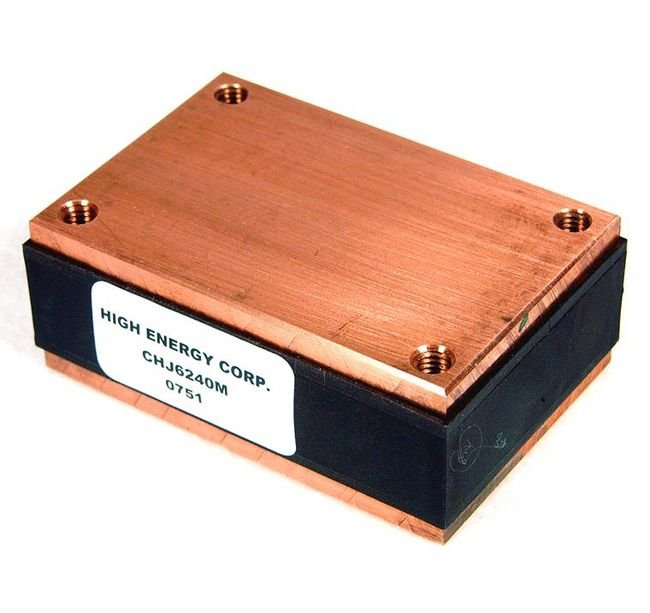

The CHJ Series Metallized Film Capacitors offer exceptional performance with up to 700 VRMS Working Voltage and 210 kVA Max Power. With a capacitance range of 0.18 to 5.0 µF and precision control (±10% Capacitance Tolerance), these capacitors are designed for high-power applications. Featuring conduction cooling for efficient heat dissipation and stackable design for versatility, they are ideal for demanding industrial and institutional settings. Compliant with federal procurement standards and industry certifications, the CHJ Series ensures reliable performance in critical installations.
Product Specifications
Specifications Cap
5.0 µF
Specifications Capacitance Range
0.18 to 5.0 µF Standard
Specifications Capacitance Tolerance
±10% Standard
Specifications Cooling Method
Conduction-cooled by bus bars

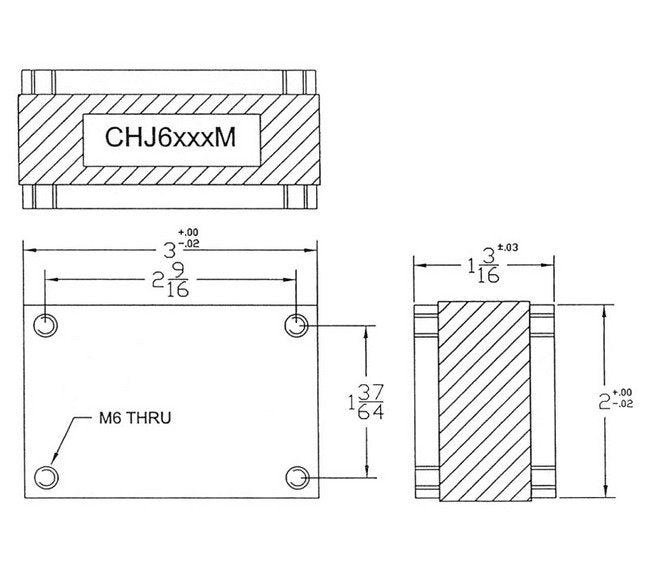

Specifications Dimensions
3 x 2 x 1 7/16 in | 76.2 x 50.8 x 36.5 mm
Specifications Dissipation Factor
0.1% Maximum
Specifications Fh
64 kHz
Specifications Fl
64 kHz
Specifications Fmax
300 kHz
Specifications Imax Rms
600 A
Specifications Operating Temperature
Up to +90 ºC
Specifications Smax
180 kV·A
Specifications Stray Inductance
Less than 5 nH
Specifications Vmax Rms
300 V
Specifications Weight
0.27 kg | 0.6 lb
