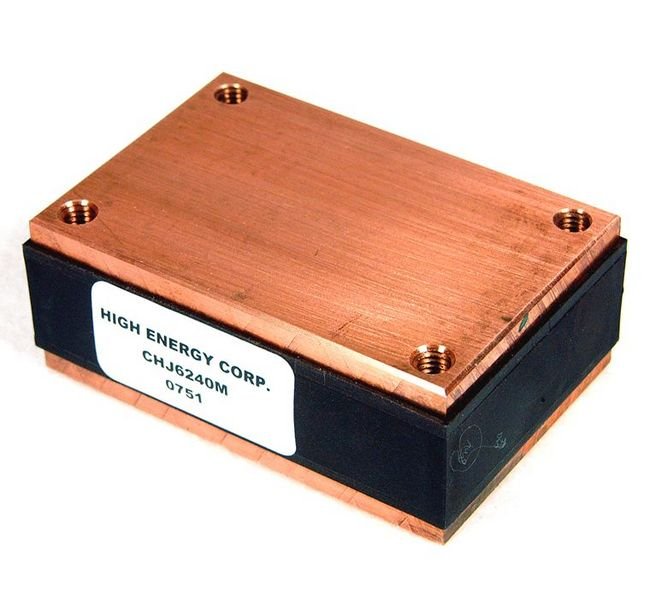

The CHJ Series Metallized Film Capacitors are engineered to deliver exceptional performance with up to 400 VRMS working voltage and 200 kV·A max power. With a capacitance range from 0.18 to 5.0 µF and ±10% capacitance tolerance, these capacitors ensure reliable operation in demanding applications. Designed for conduction cooling with bus bars and featuring low stray inductance, they offer efficient power handling and high-frequency operation. Ideal for series and parallel stacking, these capacitors are compact, lightweight, and operate reliably up to +90 ºC. Trust the CHJ Series for superior performance and durability in your critical projects.
Product Specifications
Specifications Cap
2.4 µF
Specifications Capacitance Range
0.18 to 5.0 µF Standard
Specifications Capacitance Tolerance
±10% Standard
Specifications Cooling Method
Conduction-cooled by bus bars

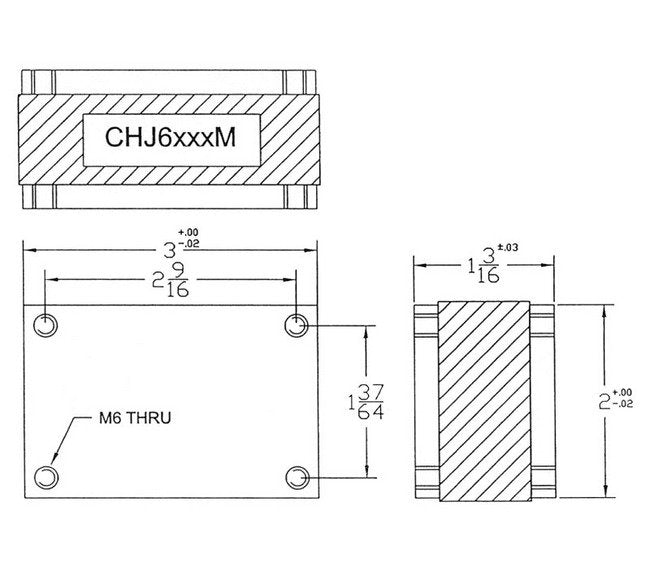

Specifications Dimensions
3 x 2 x 1 7/16 in | 76.2 x 50.8 x 36.5 mm
Specifications Dissipation Factor
0.1% Maximum
Specifications Fh
91 kHz
Specifications Fl
83 kHz
Specifications Fmax
300 kHz
Specifications Imax Rms
525 A
Specifications Operating Temperature
Up to +90 ºC
Specifications Smax
200 kV·A
Specifications Stray Inductance
Less than 5 nH
Specifications Vmax Rms
400 V
Specifications Weight
0.27 kg | 0.6 lb
