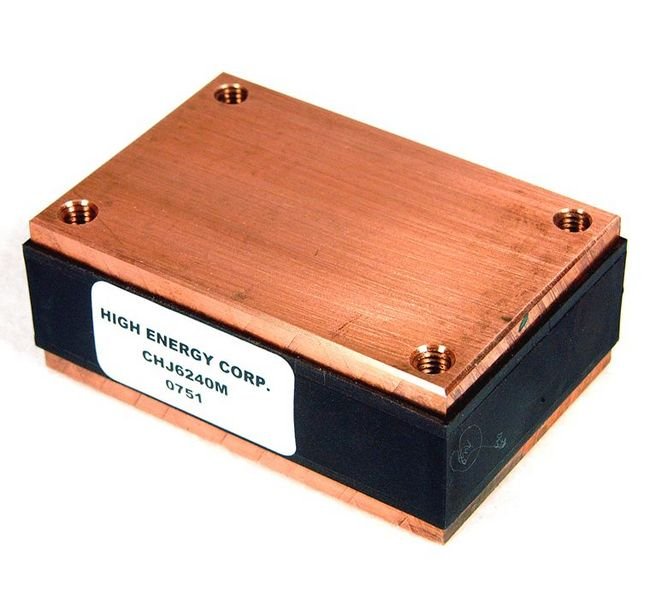

CHJ Series Metallized Film Capacitors - High Voltage Power Solution

Name: CHJ Series Metallized Film Capacitors - High Voltage Power Solution
Brand: High Energy Corp.
SKU: MET-020071
Price: 59.99 USD
Availability: OutOfStock

SKU:MET-020071

High-voltage CHJ Series Metallized Film Capacitors with up to 700 VRMS working voltage and 210 kVA max power, ideal for industrial and institutional applications.

$59.99

Sale

Quantity

Delivery via Maden

Expect your order to arrive on time.

Secure Payments

All orders are processed through a secure, PCI-compliant checkout.

View full details

The CHJ Series Metallized Film Capacitors are engineered to deliver exceptional performance in high-voltage applications. With a working voltage of up to 700 VRMS and a maximum power of 210 kVA, these capacitors offer reliable and efficient power management. Designed for conduction-cooled operation using bus bars, they ensure optimal cooling efficiency. The series and parallel stackable design provides versatility in configuration, making them ideal for a wide range of industrial and institutional applications. With capacitance range options from 0.18 to 5.0 µF and strict ±10% capacitance tolerance, these capacitors offer precision and consistency in electrical systems. Built to withstand temperatures up to +90 ºC and featuring low stray inductance, they meet the stringent requirements of government and institutional procurement standards.

Product Specifications

Specifications Cap

0.24 µF

Specifications Capacitance Range

0.18 to 5.0 µF Standard

Specifications Capacitance Tolerance

±10% Standard

Specifications Cooling Method

Conduction-cooled by bus bars

Specifications Dimensions

3 x 2 x 1 7/16 in | 76.2 x 50.8 x 36.5 mm

Specifications Dissipation Factor

0.1% Maximum

Specifications Fh

444 kHz

Specifications Fl

284 kHz

Specifications Fmax

600 kHz

Specifications Imax Rms

375 A

Specifications Operating Temperature

Up to +90 ºC

Specifications Smax

210 kV·A

Specifications Stray Inductance

Less than 5 nH

Specifications Vmax Rms

700 V

Specifications Weight

0.27 kg | 0.6 lb
