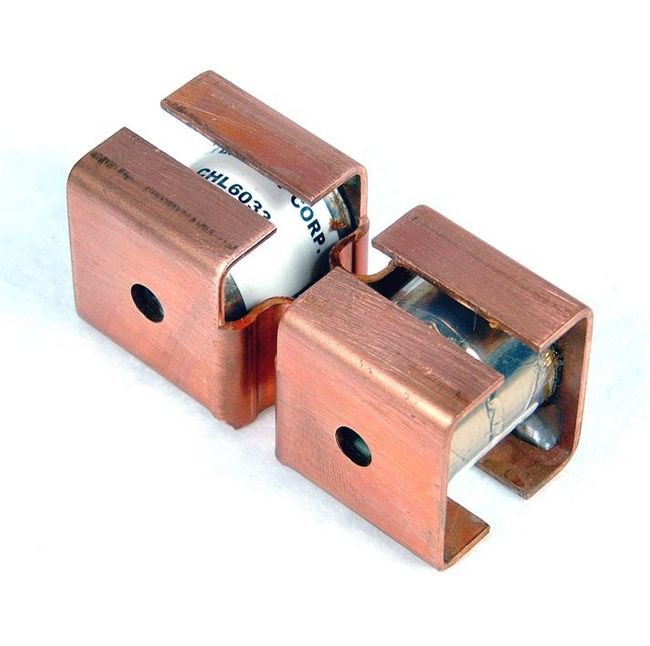

CHL Series Metallized Film Capacitors - 400V 2.5µF
CHL Series Metallized Film Capacitors - 400V 2.5µF
SKU:MET-da3899
High-performance CHL Series Metallized Film Capacitors for reliable power applications.
Regular price
$49.99
Regular price
Sale price
$49.99
Unit price
per
Initiate Order
CHL Series Metallized Film Capacitors - 400V 2.5µF
$49.99
Quantity: 1
Claim Your Seller Account
CHL Series Metallized Film Capacitors - 400V 2.5µF
$49.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.
The CHL Series Metallized Film Capacitors offer exceptional performance with a working voltage of up to 400 VRMS and a maximum power of 160 kVA. Featuring a capacitance range of 0.1 to 2.5 µF and a conduction-cooled design, these capacitors are ideal for demanding applications. With dimensions of 2 11/16 x 1 1/4 x 1 3/16 inches and a weight of 0.5 kg, they are compact yet powerful. These capacitors operate efficiently at temperatures up to +90 ºC and have minimal stray inductance, ensuring reliable performance in a variety of settings.
Product Specifications
Specifications Cap
2.5 µF
Specifications Capacitance Range
0.1 to 2.5 µF Standard
Specifications Capacitance Tolerance
±10% Standard
Specifications Cooling Method
Conduction-cooled by bus bars

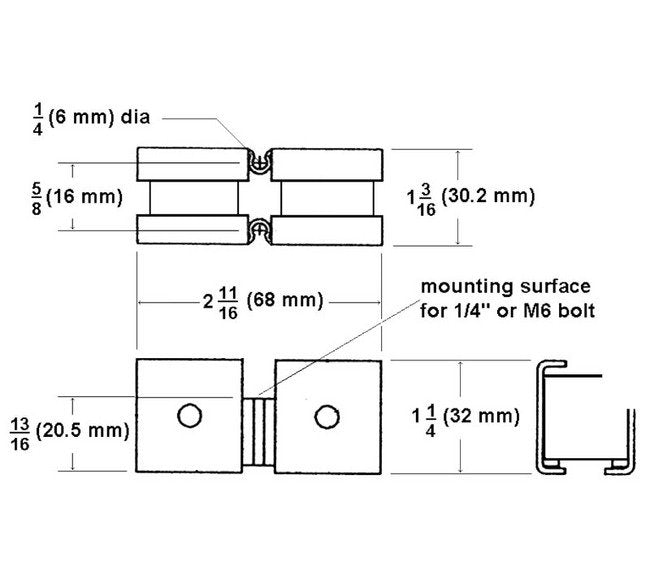

Specifications Dimensions
2 11/16 x 1 1/4 x 1 3/16 in | 68 x 32 x 30.2 mm
Specifications Dissipation Factor
0.1% Maximum
Specifications Fh
64 kHz
Specifications Fl
64 kHz
Specifications Fmax
800 kHz
Specifications Imax Rms
400 A
Specifications Operating Temperature
Up to +90 ºC
Specifications Smax
160 kV·A
Specifications Stray Inductance
Less than 5 nH
Specifications Vmax Rms
400 V
Specifications Weight
0.5 kg | 1.1 lb
