CHL Series Metallized Film Capacitors - 700 VRMS, 160 kVA

Name: CHL Series Metallized Film Capacitors - 700 VRMS, 160 kVA
Brand: High Energy Corp.
SKU: MET-62e644
Price: 49.99 USD
Availability: OutOfStock

SKU:MET-62e644

High-performance metallized film capacitors for demanding applications. Up to 700 VRMS, 160 kVA capacity.

$49.99

Sale

Quantity

Delivery via Maden

Expect your order to arrive on time.

Secure Payments

All orders are processed through a secure, PCI-compliant checkout.

View full details

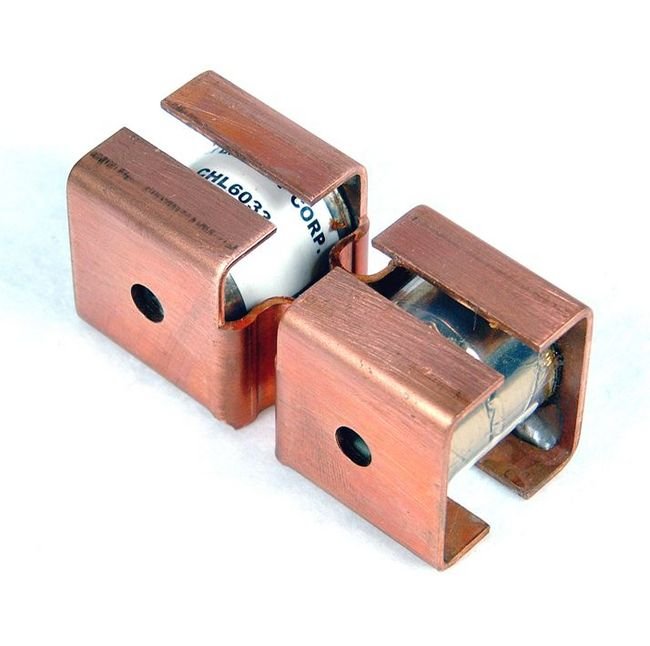

The CHL Series Metallized Film Capacitors are designed for high-performance applications, featuring a working voltage of up to 700 VRMS and maximum power capacity of 160 kVA. With a capacitance range of 0.1 to 2.5 µF and conduction-cooled design, these capacitors offer reliable operation at temperatures up to +90 ºC. Stackable in series and parallel configurations, they provide versatility and efficiency for various electrical systems. Compliance with Federal/DoD procurement standards, GSA requirements, and FAR factors ensures suitability for government and institutional use.

Product Specifications

Specifications Cap

0.33 µF

Specifications Capacitance Range

0.1 to 2.5 µF Standard

Specifications Capacitance Tolerance

±10% Standard

Specifications Cooling Method

Conduction-cooled by bus bars

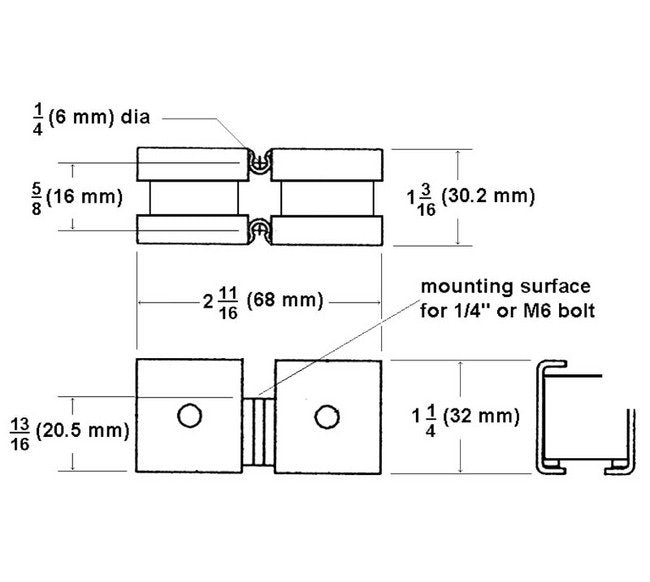

Specifications Dimensions

2 11/16 x 1 1/4 x 1 3/16 in | 68 x 32 x 30.2 mm

Specifications Dissipation Factor

0.1% Maximum

Specifications Fh

228 kHz

Specifications Fl

157 kHz

Specifications Fmax

800 kHz

Specifications Imax Rms

275 A

Specifications Operating Temperature

Up to +90 ºC

Specifications Smax

160 kV·A

Specifications Stray Inductance

Less than 5 nH

Specifications Vmax Rms

700 V

Specifications Weight

0.5 kg | 1.1 lb
