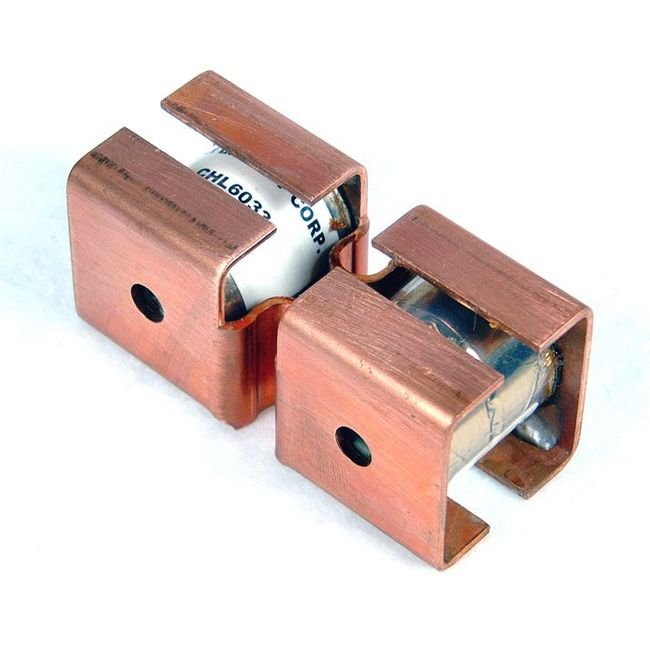

The CHL Series Metallized Film Capacitors are designed to meet the stringent requirements of high-voltage applications, offering a working voltage of up to 600 V RMS and a maximum power of 160 kVA. With a capacitance range from 0.1 to 2.5 µF and a capacitance tolerance of ±10%, these capacitors provide reliable and precise performance. Operable at temperatures up to +90 ºC and conduction-cooled by bus bars, they ensure optimal functionality and longevity. With a compact size of 2 11/16 x 1 1/4 x 1 3/16 inches and a weight of 0.5 kg, these capacitors are versatile and easy to integrate into various systems.
Product Specifications
Specifications Cap
0.66 µF
Specifications Capacitance Range
0.1 to 2.5 µF Standard
Specifications Capacitance Tolerance
±10% Standard
Specifications Cooling Method
Conduction-cooled by bus bars

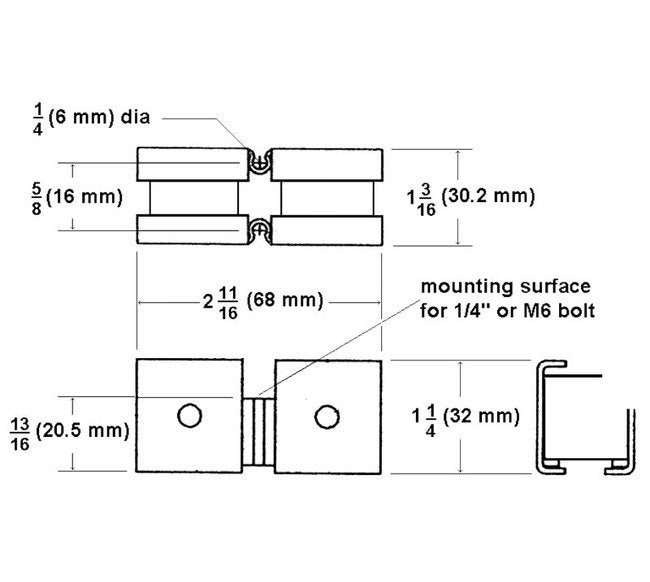

Specifications Dimensions
2 11/16 x 1 1/4 x 1 3/16 in | 68 x 32 x 30.2 mm
Specifications Dissipation Factor
0.1% Maximum
Specifications Fh
135 kHz
Specifications Fl
107 kHz
Specifications Fmax
800 kHz
Specifications Imax Rms
300 A
Specifications Operating Temperature
Up to +90 ºC
Specifications Smax
160 kV·A
Specifications Stray Inductance
Less than 5 nH
Specifications Vmax Rms
600 V
Specifications Weight
0.5 kg | 1.1 lb
