CHL Series Metallized Film Capacitors - High Voltage, High Power
CHL Series Metallized Film Capacitors - High Voltage, High Power
SKU:MET-b8b947
High voltage, high power metallized film capacitors for demanding applications. Stackable and conduction-cooled.
Regular price
$29.99
Regular price
Sale price
$29.99
Unit price
per
Initiate Order
CHL Series Metallized Film Capacitors - High Voltage, High Power
$29.99
Quantity: 1
Claim Your Seller Account
CHL Series Metallized Film Capacitors - High Voltage, High Power
$29.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.

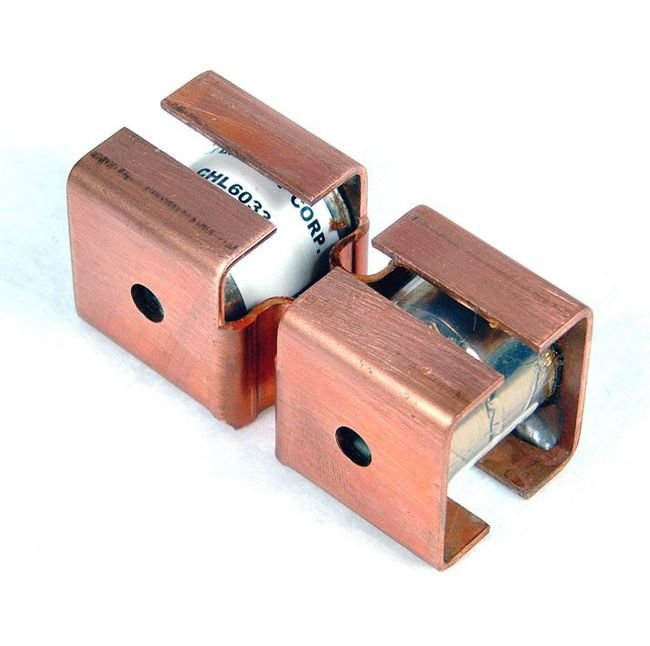

The CHL Series Metallized Film Capacitors are designed for applications requiring high voltage and high power capabilities. With a working voltage of up to 700 VRMS, a maximum power rating of 160 kVA, and a capacitance range from 0.01 to 0.33 µF, these capacitors deliver reliable performance in demanding environments. They are conduction-cooled by bus bars, ensuring efficient cooling and stable operation. With dimensions of 2 11/16 x 1 1/4 x 1 3/16 in and weighing 0.5 kg, these capacitors are compact yet robust. Their ±10% capacitance tolerance and low dissipation factor of 0.1% make them ideal for a wide range of industrial applications. The CHL Series is stackable both in series and parallel configurations, offering flexibility and ease of integration.
Product Specifications
Specifications Cap
0.01 to 0.33 µF
Specifications Capacitance Range
0.01 to 0.33 µF Custom
Specifications Capacitance Tolerance
±10% Standard
Specifications Cooling Method
Conduction-cooled by bus bars

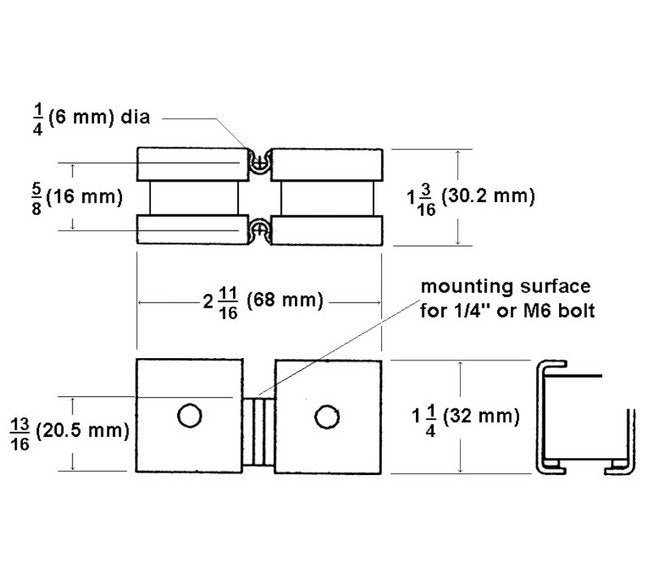

Specifications Dimensions
2 11/16 x 1 1/4 x 1 3/16 in | 68 x 32 x 30.2 mm
Specifications Dissipation Factor
0.1% Maximum
Specifications Operating Temperature
Up to +90 ºC
Specifications Stray Inductance
Less than 5 nH
Specifications Weight
0.5 kg | 1.1 lb
