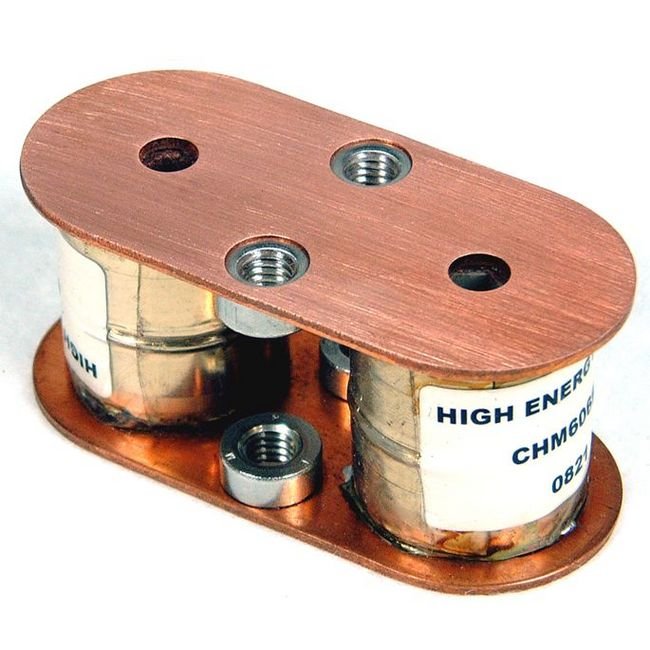

CHM Series Metallized Film Capacitors - High Performance Capacitor

Name: CHM Series Metallized Film Capacitors - High Performance Capacitor
Brand: High Energy Corp.
SKU: MET-36413f
Price: 49.99 USD
Availability: OutOfStock

SKU:MET-36413f

High-performance metallized film capacitors for demanding applications. Capacitance range: 0.1-2.5 µF. VMAX (RMS): 400V. Frequency: up to 64 kHz.

$49.99

Sale

Quantity

Delivery via Maden

Expect your order to arrive on time.

Secure Payments

All orders are processed through a secure, PCI-compliant checkout.

View full details

The CHM Series Metallized Film Capacitors offer exceptional performance with a capacitance range of 0.1 to 2.5 µF, VMAX (RMS) of 400V, and up to 64 kHz frequency handling. Designed for reliability, these capacitors support a maximum power capacity of 160 kVA and can handle currents up to 400A. With a compact size of 2 3/4 x 1 1/4 x 1 3/16 inches and conduction-cooled design, they are ideal for demanding applications requiring robust and efficient capacitors. Meeting strict industry standards, the CHM Series ensures dependable operation in various environments.

Product Specifications

Specifications Cap

2.5 µF

Specifications Capacitance Range

0.1 to 2.5 µF Standard

Specifications Capacitance Tolerance

±10% Standard

Specifications Cooling Method

Conduction-cooled by bus bars

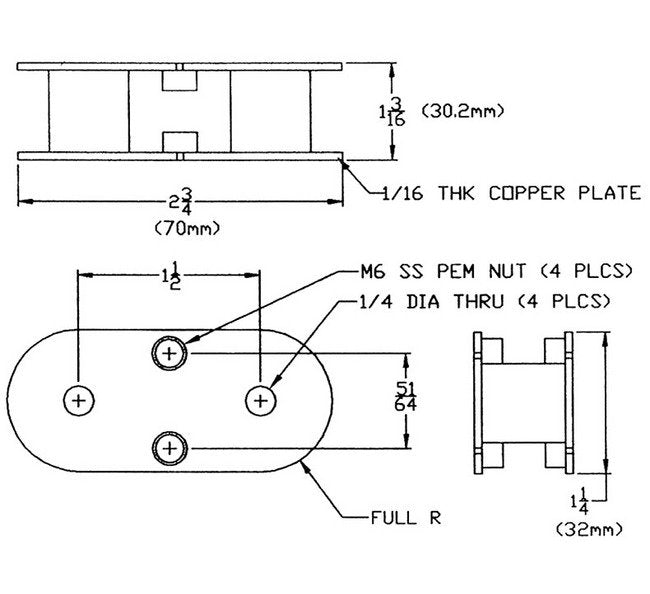

Specifications Dimensions

2 3/4 x 1 1/4 x 1 3/16 in | 70 x 32 x 30.2 mm

Specifications Dissipation Factor

0.1% Maximum

Specifications Fh

64 kHz

Specifications Fl

64 kHz

Specifications Fmax

800 kHz

Specifications Imax Rms

400 A

Specifications Operating Temperature

Up to +90 ºC

Specifications Smax

160 kV·A

Specifications Stray Inductance

Less than 5 nH

Specifications Vmax Rms

400 V

Specifications Weight

0.5 kg | 1.1 lb
