Upgrade to CHM Series Metallized Film Capacitors for superior power handling and reliability in institutional settings.

$49.99

Sale

Quantity

Delivery via Maden

Expect your order to arrive on time.

Secure Payments

All orders are processed through a secure, PCI-compliant checkout.

View full details

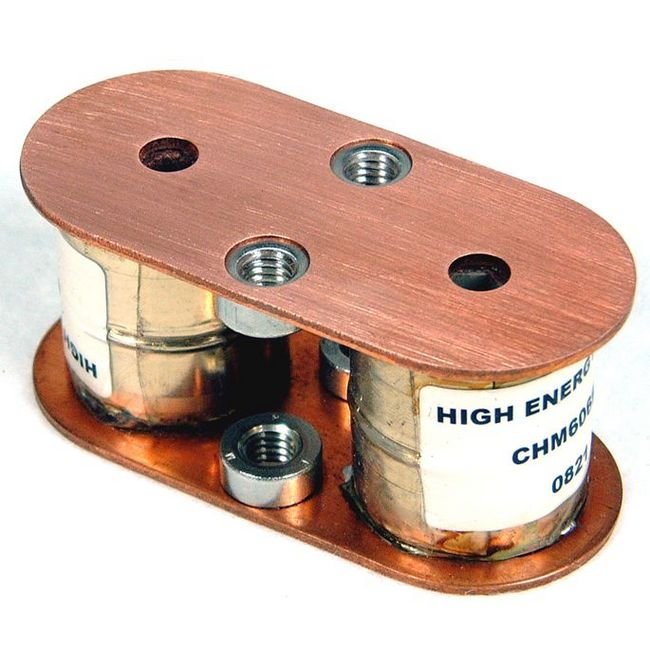

Enhance your power systems with the CHM Series Metallized Film Capacitors, capable of handling up to 700 VRMS Working Voltage and 160 kVA Max Power. These capacitors are designed for reliability and efficiency, with features like conduction-cooling by bus bars, series & parallel stackability, and a capacitance range of 0.1 to 2.5 µF. Meeting stringent industry standards, these capacitors offer precise performance up to 800 kHz, making them ideal for institutional and government applications.

Product Specifications

Specifications Cap

0.66 µF

Specifications Capacitance Range

0.1 to 2.5 µF Standard

Specifications Capacitance Tolerance

±10% Standard

Specifications Cooling Method

Conduction-cooled by bus bars

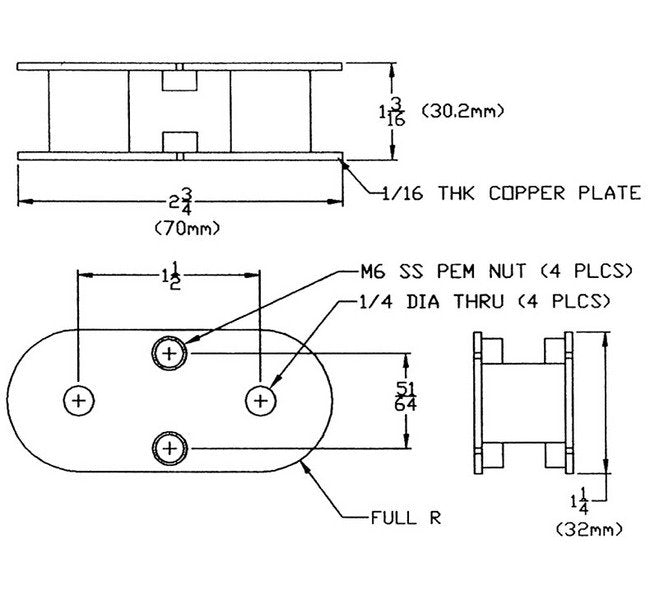

Specifications Dimensions

2 3/4 x 1 1/4 x 1 3/16 in | 70 x 32 x 30.2 mm

Specifications Dissipation Factor

0.1% Maximum

Specifications Fh

135 kHz

Specifications Fl

107 kHz

Specifications Fmax

800 kHz

Specifications Imax Rms

300 A

Specifications Operating Temperature

Up to +90 ºC

Specifications Smax

160 kV·A

Specifications Stray Inductance

Less than 5 nH

Specifications Vmax Rms

600 V

Specifications Weight

0.5 kg | 1.1 lb
