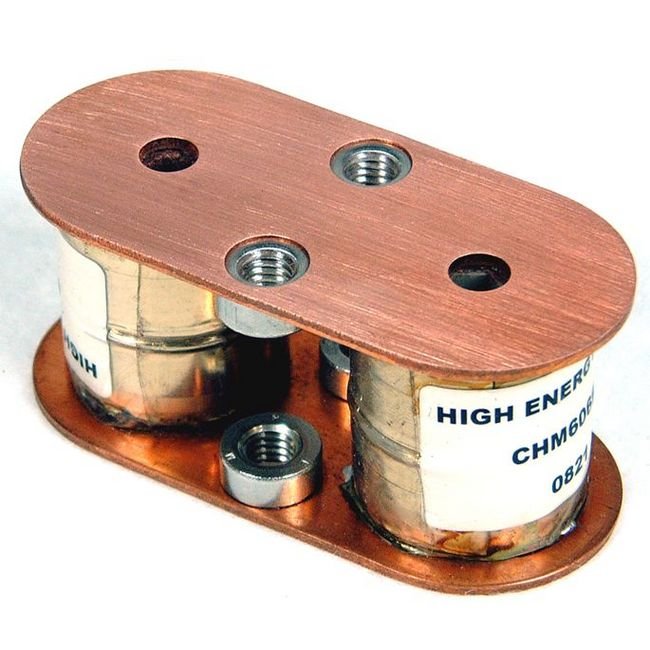

Enhance your electrical systems with the CHM Series Metallized Film Capacitors. These capacitors offer a remarkable capacitance range of 0.1 to 2.5 µF with a VMAX (RMS) of 500V, providing reliable power distribution. With a compact design of 2 3/4 x 1 1/4 x 1 3/16 inches and conduction cooling by bus bars, these capacitors ensure efficient operation even in challenging conditions. Their low dissipation factor of 0.1% maximizes energy efficiency, making them ideal for industrial applications. Compliant with industry standards, these capacitors guarantee lasting performance and stability.
Ready to Grow Without Cash Flow Constraints?
Product Specifications
Specifications Cap
1.2 µF
Specifications Capacitance Range
0.1 to 2.5 µF Standard
Specifications Capacitance Tolerance
±10% Standard
Specifications Cooling Method
Conduction-cooled by bus bars

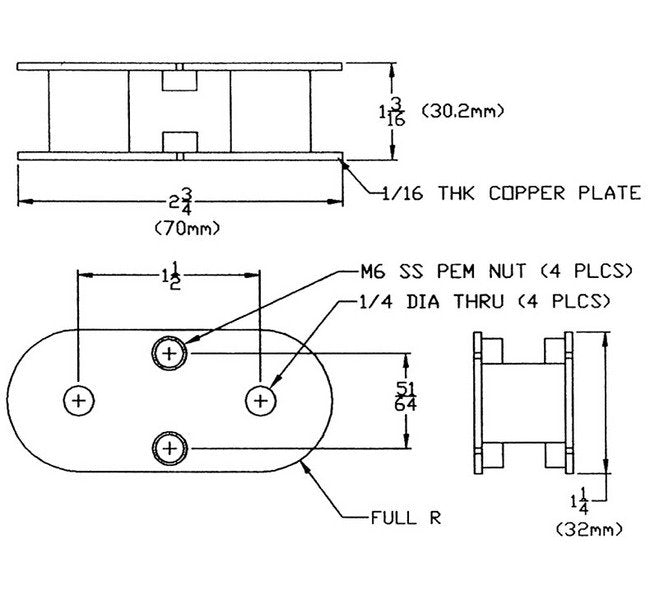

Specifications Dimensions
2 3/4 x 1 1/4 x 1 3/16 in | 70 x 32 x 30.2 mm
Specifications Dissipation Factor
0.1% Maximum
Specifications Fh
87 kHz
Specifications Fl
85 kHz
Specifications Fmax
800 kHz
Specifications Imax Rms
325 A
Specifications Operating Temperature
Up to +90 ºC
Specifications Smax
160 kV·A
Specifications Stray Inductance
Less than 5 nH
Specifications Vmax Rms
500 V
Specifications Weight
0.5 kg | 1.1 lb
