CHM Series Metallized Film Capacitors - High Voltage Capacitors

Name: CHM Series Metallized Film Capacitors - High Voltage Capacitors
Brand: High Energy Corp.
SKU: MET-29d2e5
Price: 89.99 USD
Availability: OutOfStock

SKU:MET-29d2e5

High-performance metallized film capacitors with up to 700 VRMS working voltage and 160 kVA power. Ideal for demanding applications.

$89.99

Sale

Quantity

Delivery via Maden

Expect your order to arrive on time.

Secure Payments

All orders are processed through a secure, PCI-compliant checkout.

View full details

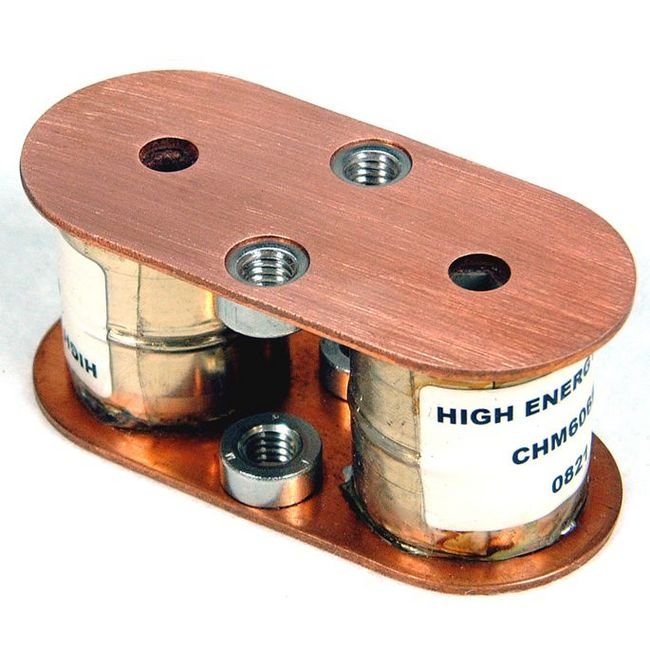

The CHM Series Metallized Film Capacitors offer exceptional performance with a maximum working voltage of 700 VRMS and a maximum power rating of 160 kVA. Designed for reliability and efficiency, these capacitors support currents of up to 400 ARMS, making them ideal for demanding applications. With series and parallel stackable options, they provide flexibility in configuration and installation. The compact design, conduction-cooled operation, and low dissipation factor ensure optimal performance even under high temperatures. Meeting stringent industry standards, these capacitors are a reliable choice for both consumer and institutional buyers seeking high-quality electrical components.

Product Specifications

Specifications Cap

0.1 µF

Specifications Capacitance Range

0.1 to 2.5 µF Standard

Specifications Capacitance Tolerance

±10% Standard

Specifications Cooling Method

Conduction-cooled by bus bars

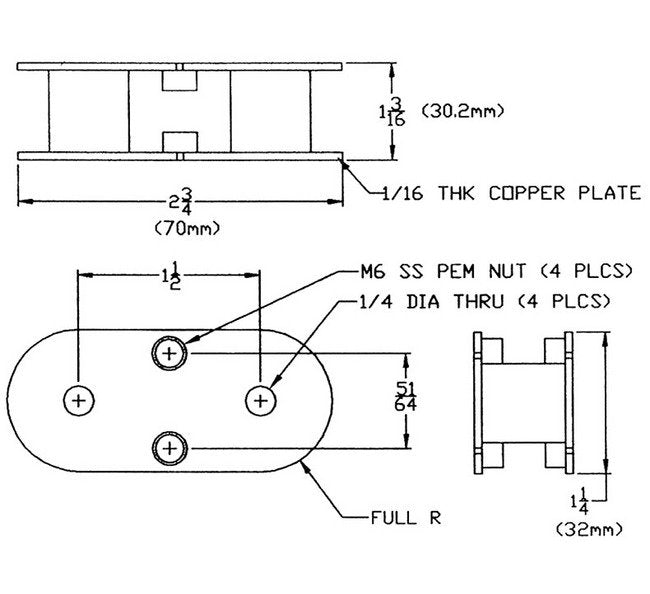

Specifications Dimensions

2 3/4 x 1 1/4 x 1 3/16 in | 70 x 32 x 30.2 mm

Specifications Dissipation Factor

0.1% Maximum

Specifications Fh

621 kHz

Specifications Fl

519 kHz

Specifications Fmax

1000 kHz

Specifications Imax Rms

250 A

Specifications Operating Temperature

Up to +90 ºC

Specifications Smax

160 kV·A

Specifications Stray Inductance

Less than 5 nH

Specifications Vmax Rms

700 V

Specifications Weight

0.5 kg | 1.1 lb
