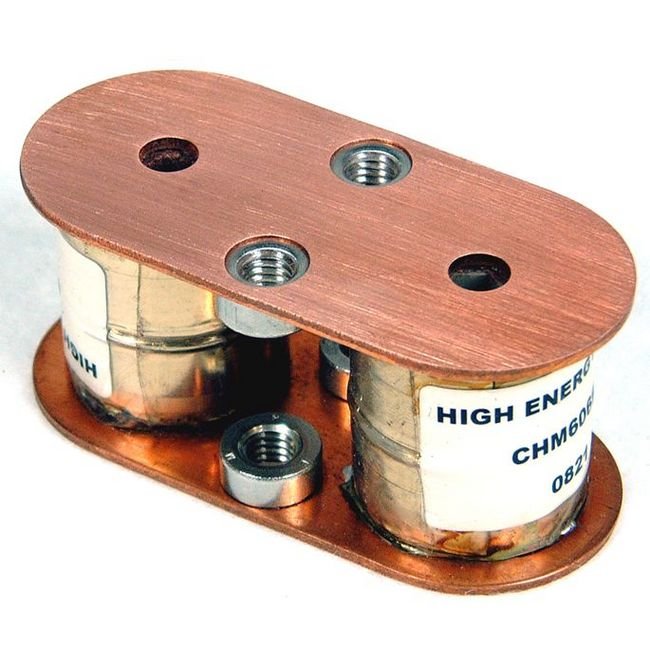

CHM Series Metallized Film Capacitors - High Voltage Power Capacitors
CHM Series Metallized Film Capacitors - High Voltage Power Capacitors
SKU:MET-9a891f
High-voltage CHM Series Metallized Film Capacitors for industrial and institutional power systems. Capacitance Range: 0.01-0.33 µF, ±10% Capacitance Tolerance.
Regular price
$49.99
Regular price
Sale price
$49.99
Unit price
per
Initiate Order
CHM Series Metallized Film Capacitors - High Voltage Power Capacitors
$49.99
Quantity: 1
Claim Your Seller Account
CHM Series Metallized Film Capacitors - High Voltage Power Capacitors
$49.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.
The CHM Series Metallized Film Capacitors are engineered for high-performance applications requiring up to 700 VRMS Working Voltage and 160 kVA Max Power. With a Capacitance Range of 0.01 to 0.33 µF and a Capacitance Tolerance of ±10%, these capacitors deliver exceptional reliability and stability. Operating up to +90 ºC, they are conduction-cooled by bus bars, ensuring efficient dissipation and minimal stray inductance. Stackable in series or parallel configurations, these capacitors are versatile for diverse industrial and institutional power systems, meeting rigorous requirements and standards for high-voltage operations.
Product Specifications
Specifications Cap
0.01 to 0.33 µF
Specifications Capacitance Range
0.01 to 0.33 µF Custom
Specifications Capacitance Tolerance
±10% Standard
Specifications Cooling Method
Conduction-cooled by bus bars

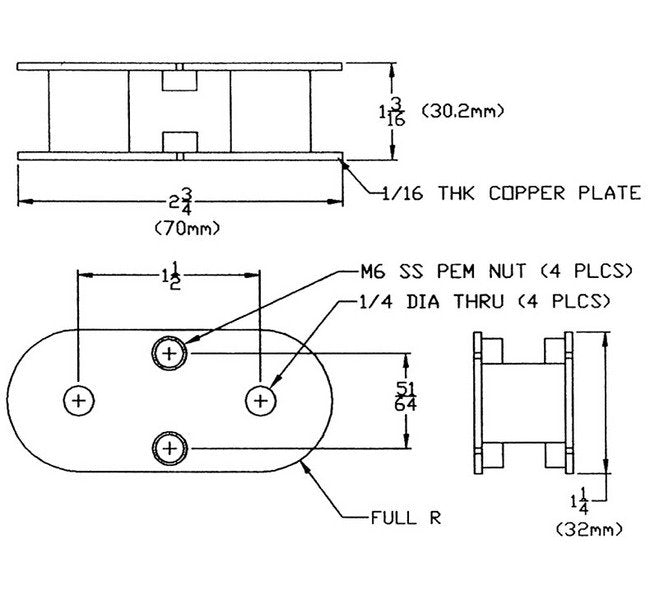

Specifications Dimensions
2 3/4 x 1 1/4 x 1 3/16 in | 70 x 32 x 30.2 mm
Specifications Dissipation Factor
0.1% Maximum
Specifications Operating Temperature
Up to +90 ºC
Specifications Stray Inductance
Less than 5 nH
Specifications Weight
0.5 kg | 1.1 lb
