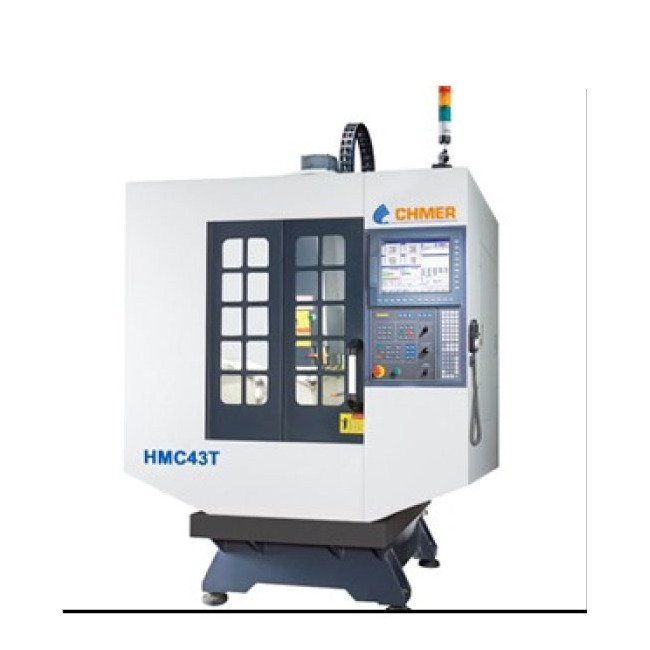

CHMER HM Series High Speed Mill HMC43(G)T
CHMER HM Series High Speed Mill HMC43(G)T
SKU:HIG-f7e59c
High precision, high efficiency CHMER HM Series High Speed Mill for industrial productivity and accuracy.
Regular price
$31,999.00
Regular price
Sale price
$31,999.00
Unit price
per
Initiate Order
CHMER HM Series High Speed Mill HMC43(G)T
$31,999.00
Quantity: 1
Claim Your Seller Account
CHMER HM Series High Speed Mill HMC43(G)T
$31,999.00
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.
The CHMER HM Series High Speed Mill HMC43(G)T offers exceptional precision and efficiency for industrial machining needs. With a maximum spindle speed ranging from 5000 to 40000 rpm and ISO20 (ER16) spindle taper, this mill ensures high productivity and accuracy. Its laser and ball bar calibrations guarantee precise positioning and accurate movements. The simplified circuit design enables easy maintenance and ensures a longer electronic life. Equipped with a working table size of 600 x 300 mm and a maximum load capacity of 150 kg, this mill integrates high accuracy, productivity, and efficiency into its design to cater to diverse industrial applications.
Product Specifications
Ball Bar Calibration 0
Renishaw ball bar testing used to test and record each machine's X and Y simultaneous movements.This guarantees ideal and accurate table movement and ball screw backlash.
Features 0
High Accuracy: Economical Position High Productivity: Application DrivenHigh Efficiency: Utmost Performance Integration, Solution and Automation
Laser Calibration 0
Laser measurement of X and Y Axis using high quality super precision linear guide ways and ball screws.Either 28 mm or 40 mm diameter used (depending on model). Assure precise positioning, accuracy and long endurance life.
Simplified And Modulated Circuit Design 0
This makes easy maintenance due to modulated circuit board design, just change the pcb when trouble occurred.Equipped with air cooling system for thermal regulation inside the generator.This provides better efficiency and longer electronic life within the system.
Specifications Distance From Table Surface To Spindle Nose
180 to 450 mm
Specifications Maximum Load Of Table
150 kg
Specifications Maximum Spindle Speed
5000 to 40000 rpm
Specifications Spindle Motor Power S1
2.5 kW
Specifications Spindle Motor Power S6
3.3 kW
Specifications Spindle Taper
ISO20 (ER16)
Specifications Travel X X Y X Z
480 x 360 x 270 mm
Specifications T Slot
14 x 3 x 100 mm
Specifications Working Table Size
600 x 300 mm
Specifications Work Feed
10 m/min
