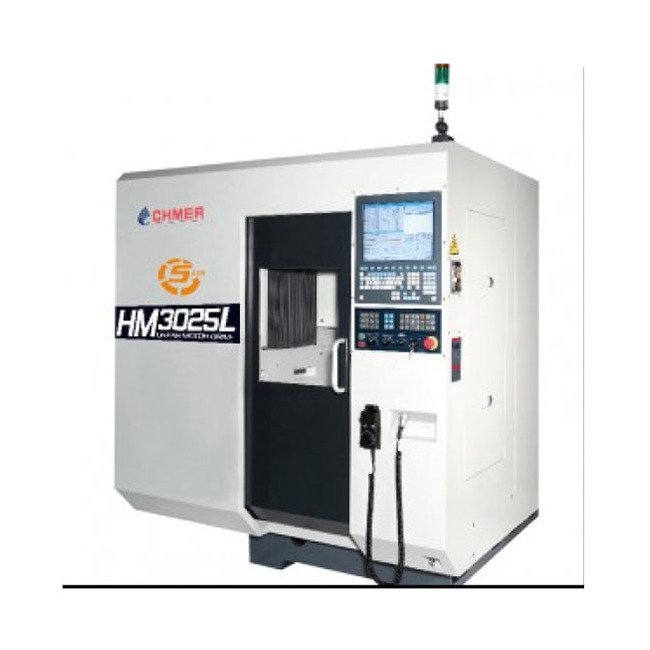

CHMER HM3025L 5-Axis High Speed Mill
CHMER HM3025L 5-Axis High Speed Mill
SKU:HIG-5ba416
Experience precision and speed with the CHMER HM3025L 5-Axis High Speed Mill. Achieve outstanding results in speed, accuracy, and surface quality.
Regular price
$35,000.00
Regular price
Sale price
$35,000.00
Unit price
per
Initiate Order
CHMER HM3025L 5-Axis High Speed Mill
$35,000.00
Quantity: 1
Claim Your Seller Account
CHMER HM3025L 5-Axis High Speed Mill
$35,000.00
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.
The CHMER HM3025L 5-Axis High Speed Mill offers cutting-edge performance for precision machining needs. With a maximum spindle speed of 30000 rpm and a powerful spindle motor, it delivers exceptional speed and accuracy. The self-developed M6H CNC Controller enables 5-axis simultaneous movement, while the HSC work mode ensures optimal results in speed, accuracy, and surface quality. The innovative design features overhead crane and travelling column structure, providing high mechanical strength and dynamic stability while conserving space. Ideal for 5-axis precise machining with the A/C Rotary Table option.
Product Specifications
Additional Information 0
Selft-developed advanced M6H CNC Controller is supportive for 5-Axis simultaneous movement. Via built-in Remote-Monitoring Function, getting real-time machine information becomes easy.With built-in type 30,000 rpm spindle plus unique HSC (high Speed Cutting) work mode, the optimum working result such as speed, accuracy or surface quality can be individually pursued.Overhead crane and travelling column structure provides with high mechanical strength and dynamic stability and occupies less floor area. 5-axis precise machining can be required by equipping with A/C Rotary Table.
Specifications Distance From Table Surface To Spindle Nose
100 to 380 mm
Specifications Maximum Load Of Table
75 kg | 100 kg
Specifications Maximum Spindle Speed
30000 rpm
Specifications Maximum X Y Axis Servo Motor
X, Y Axis Linear Motor | Z = 1.5 kw
Specifications Net Weight
4000 kg
Specifications Rapid Traverse X Y Z
20/20/30 m/min
Specifications Spindle Motor Power
3/5 kW
Specifications Spindle Taper
HSK E32
Specifications Travel X X Y X Z
300 × 250 × 280 mm
Specifications T Slot
12 mm
Specifications Working Table Diameter
220 mm
Specifications Work Feed
10 m/min
