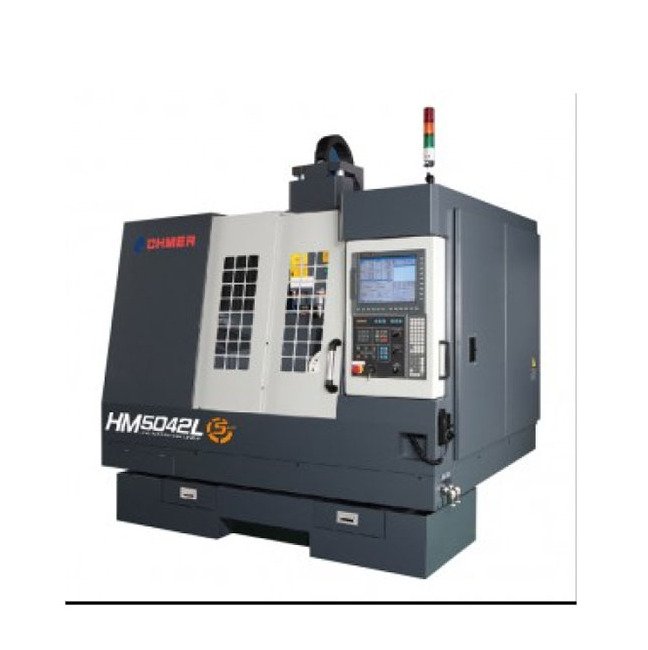

The CHMER HM5042L 5-Axis Linear Drive High Speed Mill is a cutting-edge solution for precision machining tasks. Featuring a maximum spindle speed ranging from 3000 to 30000 rpm and a high-speed HSK E32 spindle taper, this machine ensures efficient performance. With a self-developed advanced M6H CNC controller supporting 5-axis simultaneous movement, real-time monitoring, and a 30,000 rpm spindle with High Speed Cutting work mode, it delivers exceptional speed, accuracy, and surface quality. The overhead crane and travelling column structure provide superior mechanical strength and dynamic stability, making it ideal for institutions requiring 5-axis precise machining capabilities.
Product Specifications
Additional Information 0
Selft-developed advanced M6H CNC Controller is supportive for 5-Axis simultaneous movement. Via built-in Remote-Monitoring Function, getting real-time machine information becomes easy.With built-in type 30,000 rpm spindle plus unique HSC (high Speed Cutting) work mode, the optimum working result such as speed, accuracy or surface quality can be individually pursued.Overhead crane and travelling column structure provides with high mechanical strength and dynamic stability and occupies less floor area. 5-axis precise machining can be required by equipping with A/C Rotary Table.
Specifications Distance From Table Surface To Spindle Nose
250 to 550 mm
Specifications Maximum Load Of Table
120 kg
Specifications Maximum Spindle Speed
3000 to 30000 rpm
Specifications Maximum X Y Axis Servo Motor
X, Y, Z Axis Linear Motor
Specifications Net Weight
3600 kg
Specifications Spindle Motor Power
3/5 kW
Specifications Spindle Taper
HSK E32
Specifications Total Power Consumption
13.5 kV·A
Specifications Travel X X Y X Z
500 × 420 × 300 mm
Specifications T Slot
14 × 4 × 100 mm
Specifications Working Table Size
550 x 450 mm
Specifications Work Feed
10 m/min
