CHN0 Series Metallized Film Capacitors - 600V, 8.5µF
CHN0 Series Metallized Film Capacitors - 600V, 8.5µF
SKU:MET-55c355
High-performance 600V Metallized Film Capacitors - Ideal for demanding applications.
Regular price
$89.99
Regular price
Sale price
$89.99
Unit price
per
Initiate Order
CHN0 Series Metallized Film Capacitors - 600V, 8.5µF
$89.99
Quantity: 1
Claim Your Seller Account
CHN0 Series Metallized Film Capacitors - 600V, 8.5µF
$89.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.
The CHN0 Series Metallized Film Capacitors offer exceptional performance with a 600V RMS working voltage, 8.5µF capacitance, and conduction-cooled design. With a wide capacitance range, high current handling capacity, and low dissipation factor, these capacitors ensure reliable operation in demanding applications. Compliant with Federal procurement standards, GSA requirements, and FAR compliance factors, they meet stringent quality and reliability criteria for institutional and government buyers.
Product Specifications
Specifications Cap
8.5 µF
Specifications Capacitance Range
1.4 to 10 µF
Specifications Capacitance Tolerance
±10% Standard
Specifications Cooling Method
Conduction-cooled by bus bars
Specifications Dissipation Factor
0.1% Maximum
Specifications Fh
27 kHz
Specifications Fl
13 kHz
Specifications Fmax
70 kHz

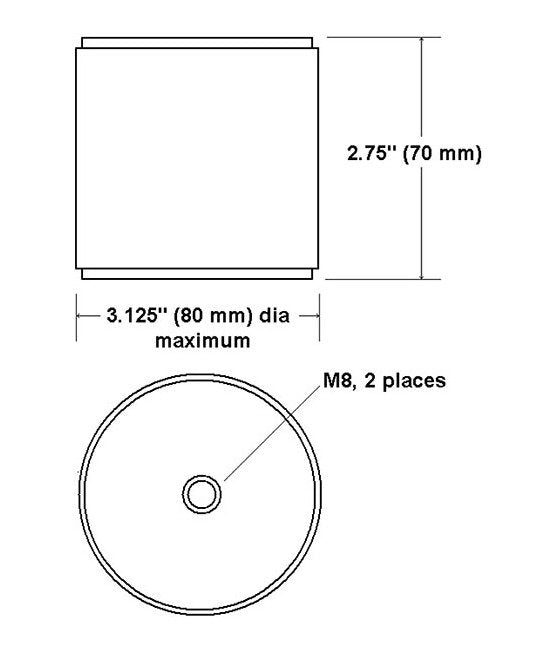

Specifications Height
2 3/4 in | 70 mm
Specifications Imax Rms
600 A
Specifications Max Diameter
3 1/8 in | 80 mm
Specifications Operating Temperature
Up to +90 ºC
Specifications Smax
250 kV·A
Specifications Stray Inductance
Less than 5 nH
Specifications Vmax Rms
600 V
Specifications Weight
0.75 kg | 1.7 lb
