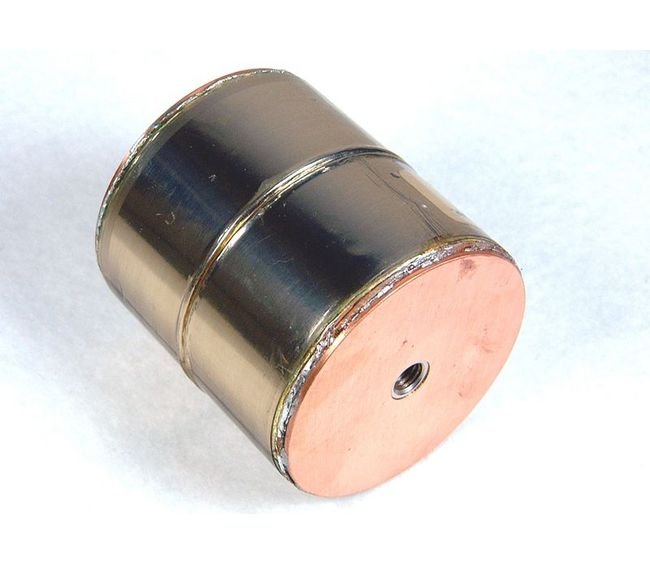

CHN0 Series Metallized Film Capacitors - High-Voltage Conduction-Cooled Capacitor

Name: CHN0 Series Metallized Film Capacitors - High-Voltage Conduction-Cooled Capacitor
Brand: High Energy Corp.
SKU: MET-440e10
Price: 99.99 USD
Availability: OutOfStock

SKU:MET-440e10

High-performance CHN0 Series Metallized Film Capacitors with up to 650 VRMS Working Voltage and efficient conduction cooling.

$99.99

Sale

Quantity

Delivery via Maden

Expect your order to arrive on time.

Secure Payments

All orders are processed through a secure, PCI-compliant checkout.

View full details

The CHN0 Series Metallized Film Capacitors are designed for high-performance applications requiring up to 650 VRMS Working Voltage and 250 kVA Max Power. With a capacitance range of 1.4 to 10 µF and ±10% standard capacitance tolerance, these capacitors guarantee reliable and stable operation. Cooling is efficiently managed through conduction by bus bars, ensuring optimal performance even in demanding environments. Measuring 3 1/8 inches in diameter and weighing just 0.75 kg, these capacitors are compact yet powerful, with low stray inductance and a dissipation factor of maximum 0.1%. Trust in the CHN0 Series for superior quality and compliance with industry standards.

Product Specifications

Specifications Cap

3.0 µF

Specifications Capacitance Range

1.4 to 10 µF

Specifications Capacitance Tolerance

±10% Standard

Specifications Cooling Method

Conduction-cooled by bus bars

Specifications Dissipation Factor

0.1% Maximum

Specifications Fh

53 kHz

Specifications Fl

31 kHz

Specifications Fmax

70 kHz

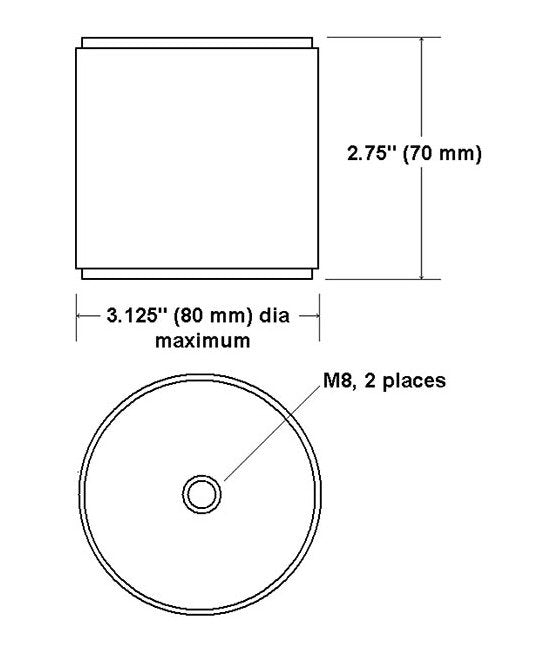

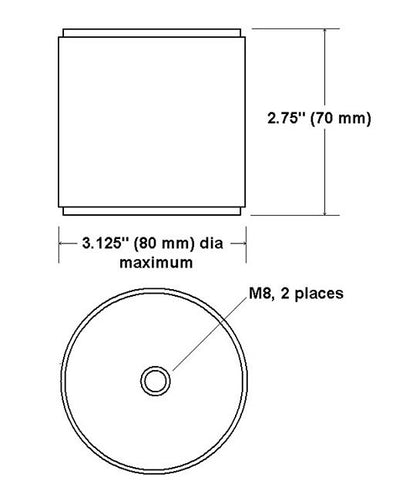

Specifications Height

2 3/4 in | 70 mm

Specifications Imax Rms

500 A

Specifications Max Diameter

3 1/8 in | 80 mm

Specifications Operating Temperature

Up to +90 ºC

Specifications Smax

250 kV·A

Specifications Stray Inductance

Less than 5 nH

Specifications Vmax Rms

650 V

Specifications Weight

0.75 kg | 1.7 lb
