CHN0 Series Metallized Film Capacitors - High Voltage, High Power
CHN0 Series Metallized Film Capacitors - High Voltage, High Power
SKU:MET-839f08
CHN0 Series Metallized Film Capacitors - High voltage, high power capacitors for demanding applications.
Regular price
$149.99
Regular price
Sale price
$149.99
Unit price
per
Initiate Order
CHN0 Series Metallized Film Capacitors - High Voltage, High Power
$149.99
Quantity: 1
Claim Your Seller Account
CHN0 Series Metallized Film Capacitors - High Voltage, High Power
$149.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.

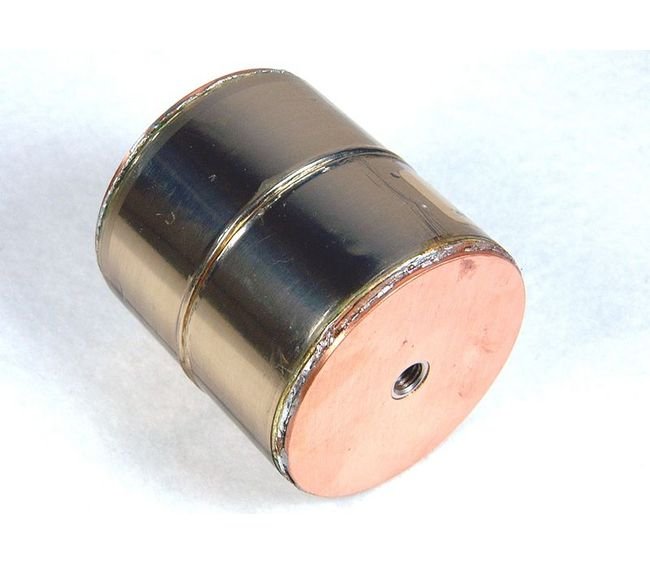

The CHN0 Series Metallized Film Capacitors are designed to meet the demanding requirements of institutional and government applications. With a working voltage of up to 650 VRMS, maximum power of 250 kVA, and maximum current of 600 ARMS, these capacitors are ideal for high-power systems. They are conduction-cooled using bus bars, offering reliable performance in various conditions. With a capacitance range from 1.4 to 10 µF and capacitance tolerance of ±10%, these capacitors provide precise energy storage. The compact design, low dissipation factor, and minimal stray inductance make them suitable for critical applications where efficiency and reliability are paramount.
Product Specifications
Specifications Cap
1.4 µF
Specifications Capacitance Range
1.4 to 10 µF
Specifications Capacitance Tolerance
±10% Standard
Specifications Cooling Method
Conduction-cooled by bus bars
Specifications Dissipation Factor
0.1% Maximum
Specifications Fh
73 kHz
Specifications Fl
67 kHz
Specifications Fmax
70 kHz

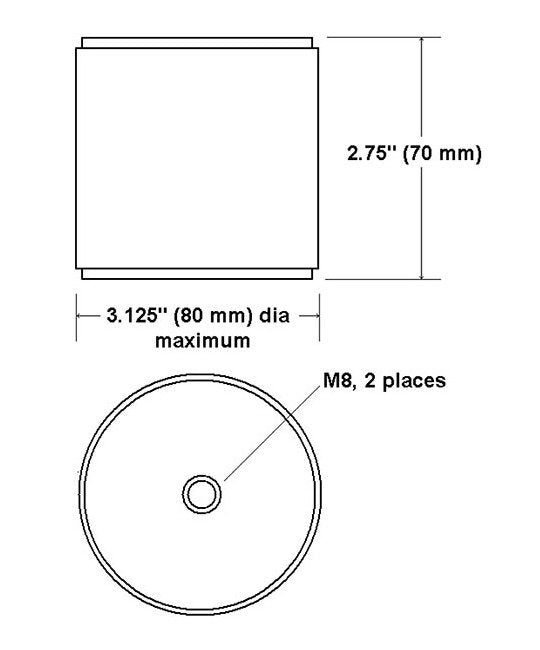

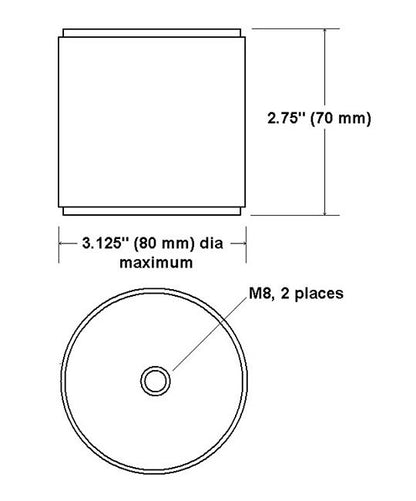

Specifications Height
2 3/4 in | 70 mm
Specifications Imax Rms
400 A
Specifications Max Diameter
3 1/8 in | 80 mm
Specifications Operating Temperature
Up to +90 ºC
Specifications Smax
250 kV·A
Specifications Stray Inductance
Less than 5 nH
Specifications Vmax Rms
650 V
Specifications Weight
0.75 kg | 1.7 lb
