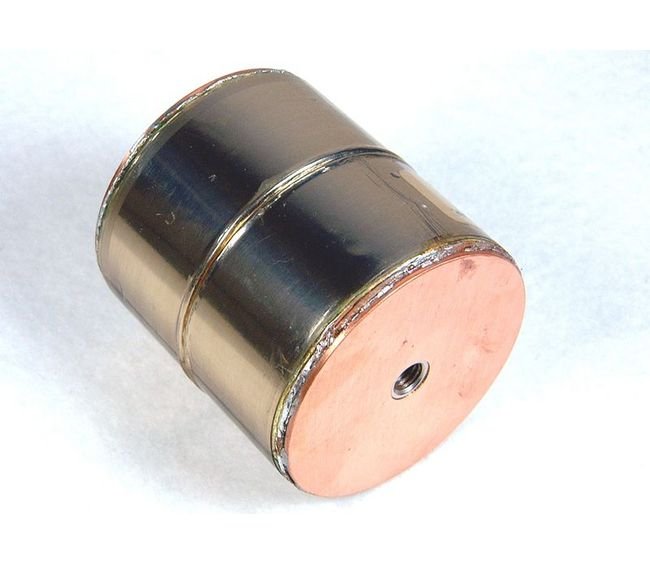

The CHN0 Series Metallized Film Capacitors are engineered to deliver exceptional performance in high-power applications, with a working voltage of up to 650 VRMS and a maximum power of 250 kVA. These capacitors are conduction-cooled, ensuring efficient heat dissipation for reliable operation. With a capacitance of up to 10 µF and a compact design featuring a max diameter of 80 mm and a height of 70 mm, these capacitors offer versatility without compromising on quality. Operating at temperatures up to +90 ºC, they maintain stability under varying conditions. The ±10% capacitance tolerance, low dissipation factor of 0.1%, and stray inductance less than 5 nH make the CHN0 Series ideal for demanding industrial and institutional applications.
Product Specifications
Specifications Capacitance Tolerance
±10% Standard
Specifications Cooling Method
Conduction-cooled by bus bars
Specifications Dissipation Factor
0.1% Maximum

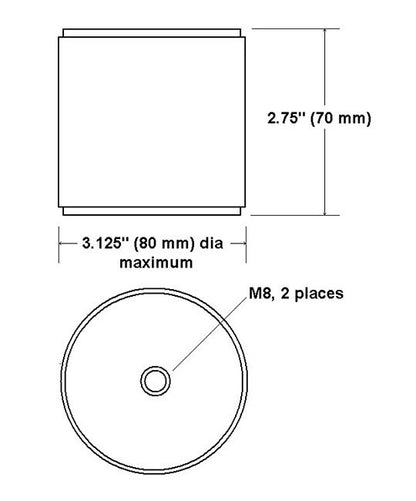

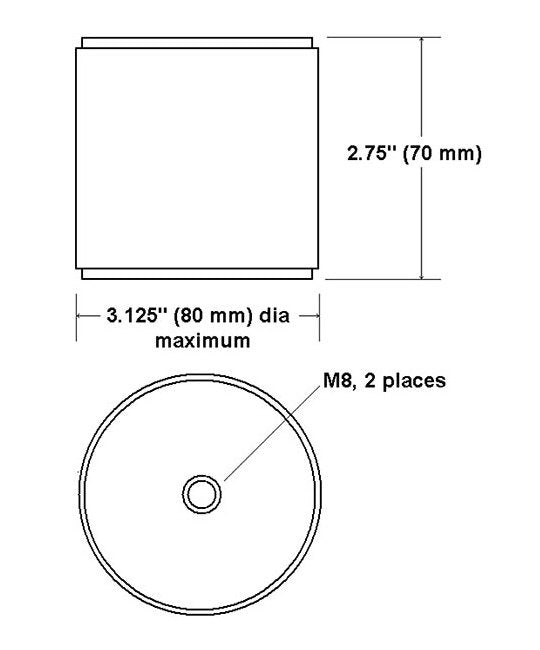

Specifications Height
2 3/4 in | 70 mm
Specifications Max Diameter
3 1/8 in | 80 mm
Specifications Operating Temperature
Up to +90 ºC
Specifications Stray Inductance
Less than 5 nH
Specifications Weight
0.75 kg | 1.7 lb
