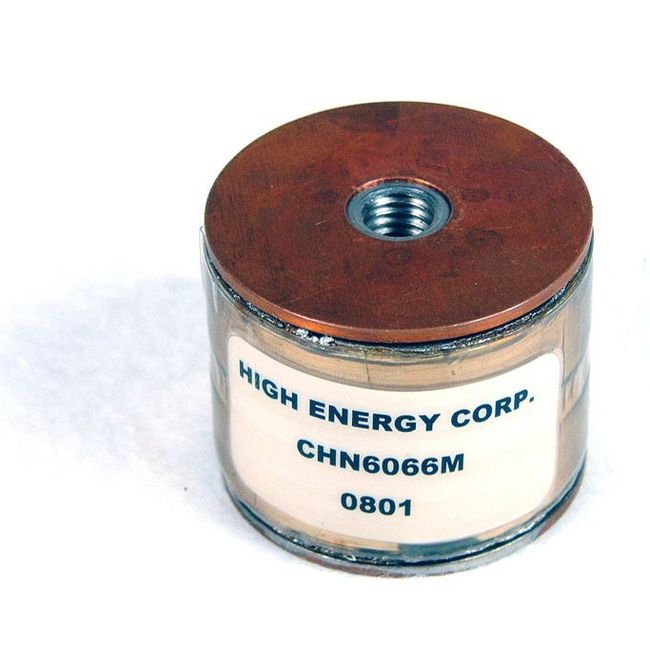

CHN6 Metallized Film Capacitors - 0.33 µF, 700V, Conduction-Cooled
CHN6 Metallized Film Capacitors - 0.33 µF, 700V, Conduction-Cooled
SKU:MET-0fbbbe
High-performance CHN6 Metallized Film Capacitors for reliable power handling. 0.33 µF, 700V, conduction-cooled design.
Regular price
$29.99
Regular price
Sale price
$29.99
Unit price
per
Initiate Order
CHN6 Metallized Film Capacitors - 0.33 µF, 700V, Conduction-Cooled
$29.99
Quantity: 1
Claim Your Seller Account
CHN6 Metallized Film Capacitors - 0.33 µF, 700V, Conduction-Cooled
$29.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.
The CHN6 Series Metallized Film Capacitors offer reliable performance with a capacitance of 0.33 µF and a maximum working voltage of 700 V RMS. With a compact diameter of 30mm and height of 29mm, these capacitors are conduction-cooled by bus bars, ensuring efficient heat dissipation. Ideal for applications requiring high power handling (up to 120 kVA) and low dissipation factor (0.1% maximum), these capacitors operate seamlessly at temperatures up to +90 ºC. Backed by industry-leading standards, the CHN6 series guarantees durability, precision, and safety in every usage.
Product Specifications
Specifications Cap
0.33 µF
Specifications Capacitance Range
0.025 to 1.2 µF
Specifications Capacitance Tolerance
±10% Standard
Specifications Cooling Method
Conduction-cooled by bus bars
Specifications Diameter
1 3/16 in | 30 mm
Specifications Dissipation Factor
0.1% Maximum
Specifications Fh
161 kHz
Specifications Fl
118 kHz
Specifications Fmax
1000 kHz
Specifications Height
1 1/8 in | 29 mm
Specifications Imax Rms
200 A
Specifications Operating Temperature
Up to +90 ºC
Specifications Smax
120 kV·A
Specifications Stray Inductance
Less than 5 nH
Specifications Vmax Rms
700 V
Specifications Weight
0.15 kg | 0.33 lb
