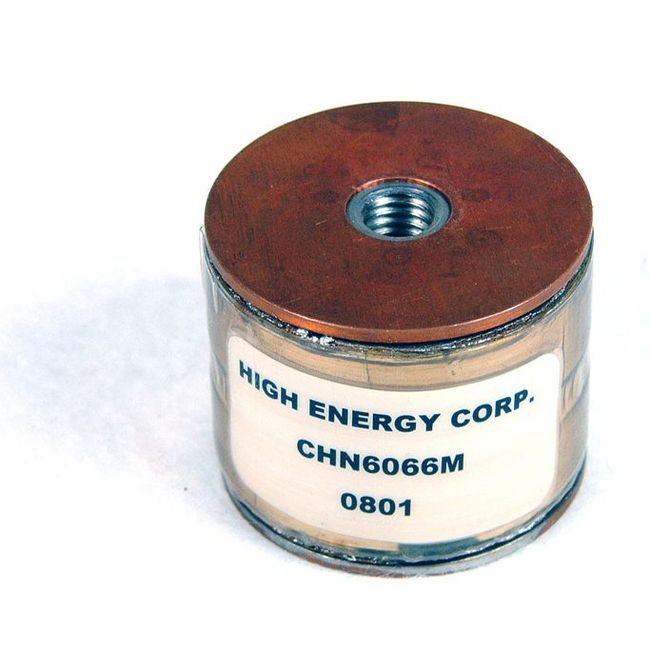

CHN6 Metallized Film Capacitors - 1.2 µF, 450V
CHN6 Metallized Film Capacitors - 1.2 µF, 450V
SKU:MET-65b98a
High-performance CHN6 Metallized Film Capacitors - 1.2 µF, 450V, conduction-cooled, and reliable for various applications.
Regular price
$24.99
Regular price
Sale price
$24.99
Unit price
per
Initiate Order
CHN6 Metallized Film Capacitors - 1.2 µF, 450V
$24.99
Quantity: 1
Claim Your Seller Account
CHN6 Metallized Film Capacitors - 1.2 µF, 450V
$24.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.
The CHN6 Series Metallized Film Capacitors are reliable and high-performance components suitable for a wide range of applications. With a capacitance range from 0.025 to 1.2 µF and a maximum working voltage of 450V, these capacitors offer exceptional performance and durability. Featuring conduction cooling through bus bars, they can handle a maximum power of 120 kVA and operate at temperatures up to +90 ºC. With low dissipation factor and stray inductance, these capacitors ensure efficient and precise operation. Designed with industry-leading specifications, the CHN6 Series is ideal for both consumer and institutional buyers seeking quality and reliability.
Product Specifications
Specifications Cap
1.2 µF
Specifications Capacitance Range
0.025 to 1.2 µF
Specifications Capacitance Tolerance
±10% Standard
Specifications Cooling Method
Conduction-cooled by bus bars

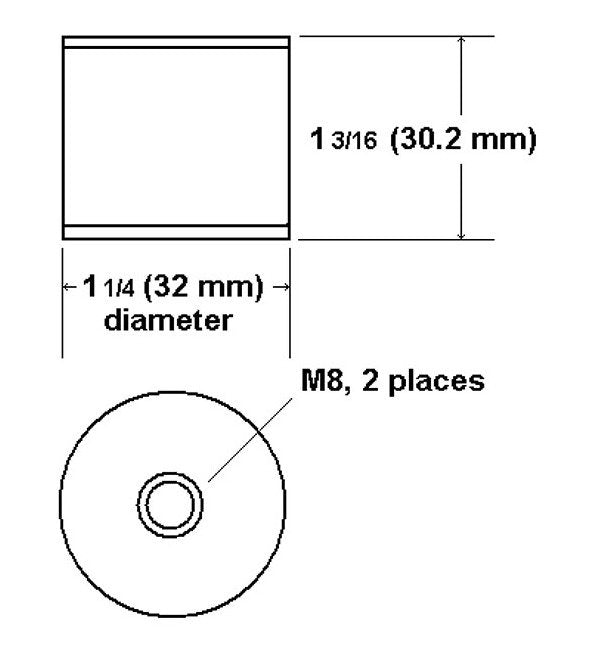

Specifications Diameter
1 3/16 in | 30 mm
Specifications Dissipation Factor
0.1% Maximum
Specifications Fh
83 kHz
Specifications Fl
79 kHz
Specifications Fmax
1000 kHz
Specifications Height
1 1/8 in | 29 mm
Specifications Imax Rms
275 A
Specifications Operating Temperature
Up to +90 ºC
Specifications Smax
120 kV·A
Specifications Stray Inductance
Less than 5 nH
Specifications Vmax Rms
450 V
Specifications Weight
0.15 kg | 0.33 lb
