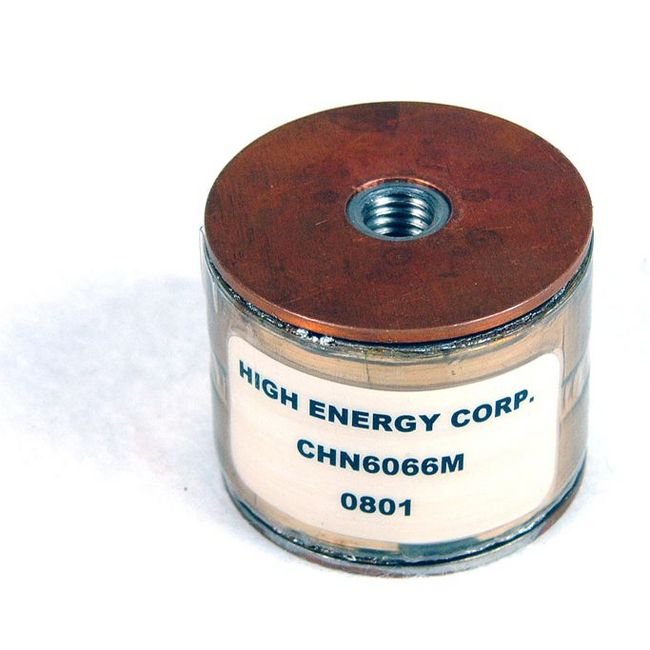

CHN6 Metallized Film Capacitors 900V 0.09 µF
CHN6 Metallized Film Capacitors 900V 0.09 µF
SKU:MET-103e28
High-performance CHN6 Metallized Film Capacitors with 900V, 0.09 µF capacitance, ideal for demanding applications.
Regular price
$29.99
Regular price
Sale price
$29.99
Unit price
per
Initiate Order
CHN6 Metallized Film Capacitors 900V 0.09 µF
$29.99
Quantity: 1
Claim Your Seller Account
CHN6 Metallized Film Capacitors 900V 0.09 µF
$29.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.
The CHN6 Series Metallized Film Capacitors are precision-engineered to deliver exceptional performance in demanding applications. With a capacitance range from 0.025 to 1.2 µF and a working voltage of up to 900 VRMS, these capacitors ensure reliable operation under varying electrical loads. Designed for conduction cooling by bus bars, they offer a maximum power of 120 kVA and a maximum current of 150 ARMS, making them ideal for high-power circuit applications. The compact design, with a diameter of 30mm and height of 29mm, enables easy integration into diverse electronic systems. Trust in the CHN6 Series for exceptional capacitance tolerance, low dissipation factor, and minimal stray inductance, meeting the stringent requirements of institutional and government procurement standards.
Product Specifications
Specifications Cap
0.09 µF
Specifications Capacitance Range
0.025 to 1.2 µF
Specifications Capacitance Tolerance
±10% Standard
Specifications Cooling Method
Conduction-cooled by bus bars

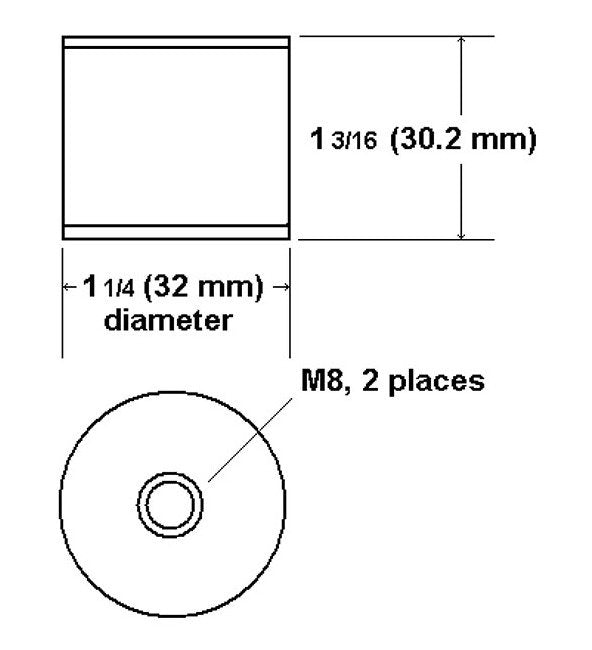

Specifications Diameter
1 3/16 in | 30 mm
Specifications Dissipation Factor
0.1% Maximum
Specifications Fh
331 kHz
Specifications Fl
262 kHz
Specifications Fmax
1000 kHz
Specifications Height
1 1/8 in | 29 mm
Specifications Imax Rms
150 A
Specifications Operating Temperature
Up to +90 ºC
Specifications Smax
120 kV·A
Specifications Stray Inductance
Less than 5 nH
Specifications Vmax Rms
900 V
Specifications Weight
0.15 kg | 0.33 lb
