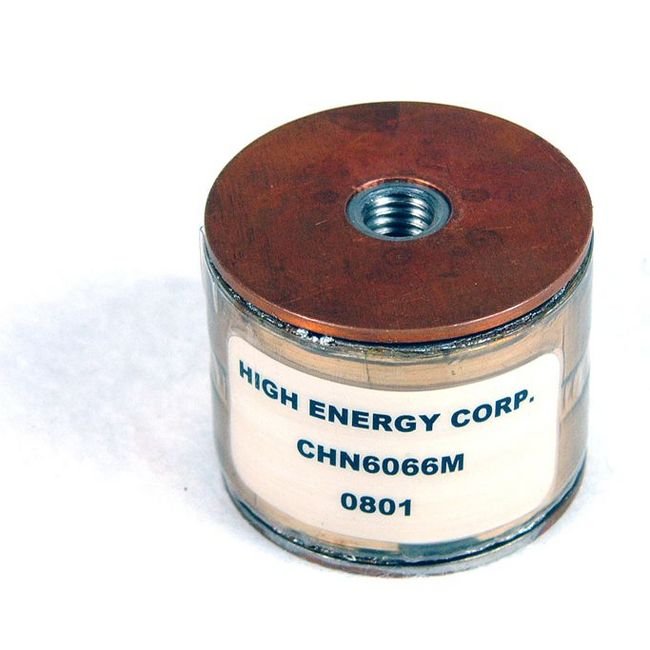

CHN6 Metallized Film Capacitors - High Voltage and Power Ratings
CHN6 Metallized Film Capacitors - High Voltage and Power Ratings
SKU:MET-a87596
Enhance your systems with CHN6 Series Metallized Film Capacitors - Reliable, high-performance capacitors for demanding applications.
Regular price
$29.99
Regular price
Sale price
$29.99
Unit price
per
Initiate Order
CHN6 Metallized Film Capacitors - High Voltage and Power Ratings
$29.99
Quantity: 1
Claim Your Seller Account
CHN6 Metallized Film Capacitors - High Voltage and Power Ratings
$29.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.
The CHN6 Series Metallized Film Capacitors offer exceptional performance with a capacitance range of 0.025 to 1.2 µF and a working voltage of up to 600 V RMS. With a maximum power rating of 120 kVA and conduction-cooled design, these capacitors ensure reliability in demanding applications. Operating at up to +90 ºC, they feature low dissipation factor, compact dimensions, and compliance with stringent industry standards, making them ideal for both consumer and institutional buyers.
Product Specifications
Specifications Cap
0.66 µF
Specifications Capacitance Range
0.025 to 1.2 µF
Specifications Capacitance Tolerance
±10% Standard
Specifications Cooling Method
Conduction-cooled by bus bars

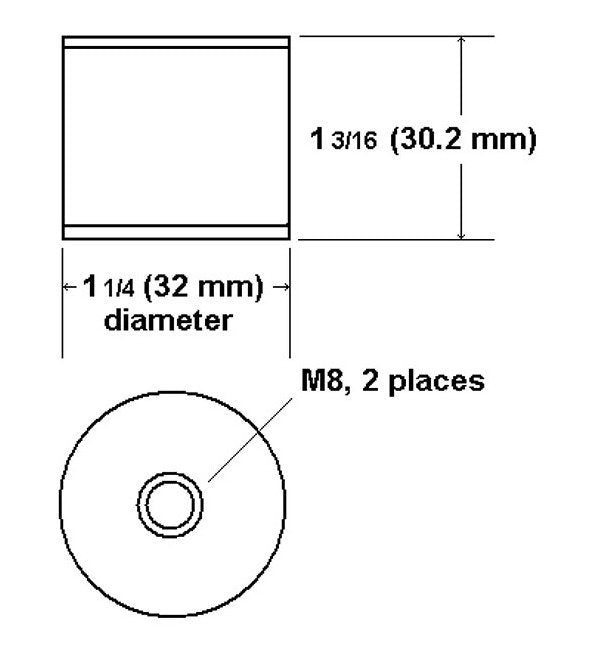

Specifications Diameter
1 3/16 in | 30 mm
Specifications Dissipation Factor
0.1% Maximum
Specifications Fh
102 kHz
Specifications Fl
80 kHz
Specifications Fmax
1000 kHz
Specifications Height
1 1/8 in | 29 mm
Specifications Imax Rms
225 A
Specifications Operating Temperature
Up to +90 ºC
Specifications Smax
120 kV·A
Specifications Stray Inductance
Less than 5 nH
Specifications Vmax Rms
600 V
Specifications Weight
0.15 kg | 0.33 lb
