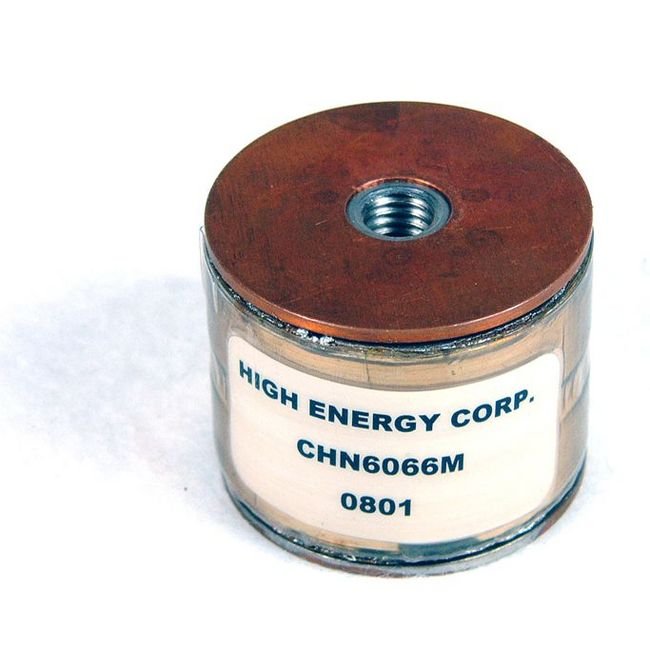

CHN6 Series Metallized Film Capacitors - 0.06 µF, 1000 V
CHN6 Series Metallized Film Capacitors - 0.06 µF, 1000 V
SKU:MET-49cee3
High-performance CHN6 Series Metallized Film Capacitors - 0.06 µF, 1000 V. Reliable, compact, and precision-engineered for various applications.
Regular price
$29.99
Regular price
Sale price
$29.99
Unit price
per
Initiate Order
CHN6 Series Metallized Film Capacitors - 0.06 µF, 1000 V
$29.99
Quantity: 1
Claim Your Seller Account
CHN6 Series Metallized Film Capacitors - 0.06 µF, 1000 V
$29.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.
The CHN6 Series Metallized Film Capacitors are high-performance components designed to deliver up to 1000 VRMS working voltage, 120 kVA max power, and up to 125 ARMS max current. These capacitors are conduction-cooled, ensuring reliable operation under demanding conditions. With capacitance range from 0.025 to 1.2 µF and ±10% capacitance tolerance, they offer precision and consistency. Featuring a compact design with a diameter of 1 3/16 inches and a height of 1 1/8 inches, these capacitors are lightweight yet durable. Operating temperature up to +90 ºC and conduction cooling by bus bars make them suitable for various applications. The low dissipation factor of 0.1% maximum and stray inductance less than 5 nH ensure efficient and stable performance.
Product Specifications
Specifications Cap
0.06 µF
Specifications Capacitance Range
0.025 to 1.2 µF
Specifications Capacitance Tolerance
±10% Standard
Specifications Cooling Method
Conduction-cooled by bus bars
Specifications Diameter
1 3/16 in | 30 mm
Specifications Dissipation Factor
0.1% Maximum
Specifications Fh
345 kHz
Specifications Fl
318 kHz
Specifications Fmax
1000 kHz
Specifications Height
1 1/8 in | 29 mm
Specifications Imax Rms
125 A
Specifications Operating Temperature
Up to +90 ºC
Specifications Smax
120 kV·A
Specifications Stray Inductance
Less than 5 nH
Specifications Vmax Rms
1000 V
Specifications Weight
0.15 kg | 0.33 lb
