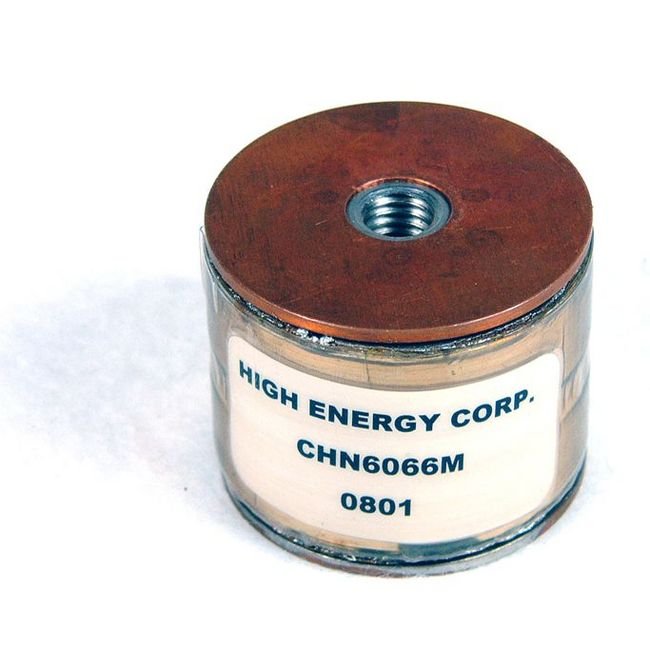

CHN6 Series Metallized Film Capacitors - 0.25 µF, 800V
CHN6 Series Metallized Film Capacitors - 0.25 µF, 800V
SKU:MET-36a158
Enhance your electrical systems with CHN6 Series Metallized Film Capacitors - Reliable, High-performance, Conduction-cooled
Regular price
$49.99
Regular price
Sale price
$49.99
Unit price
per
Initiate Order
CHN6 Series Metallized Film Capacitors - 0.25 µF, 800V
$49.99
Quantity: 1
Claim Your Seller Account
CHN6 Series Metallized Film Capacitors - 0.25 µF, 800V
$49.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.
The CHN6 Series Metallized Film Capacitors offer exceptional performance for applications requiring up to 1000 VRMS working voltage and 120 kVA max power. With a capacitance range from 0.025 to 1.2 µF and capacitance tolerance of ±10%, these capacitors provide reliable conduction-cooled operation with a dissipation factor of 0.1% maximum. Designed for high-frequency applications, these capacitors feature low stray inductance and operate efficiently at temperatures up to +90 ºC. Compliant with stringent industry standards, these capacitors ensure robust and reliable performance in demanding environments.
Product Specifications
Specifications Cap
0.25 µF
Specifications Capacitance Range
0.025 to 1.2 µF
Specifications Capacitance Tolerance
±10% Standard
Specifications Cooling Method
Conduction-cooled by bus bars

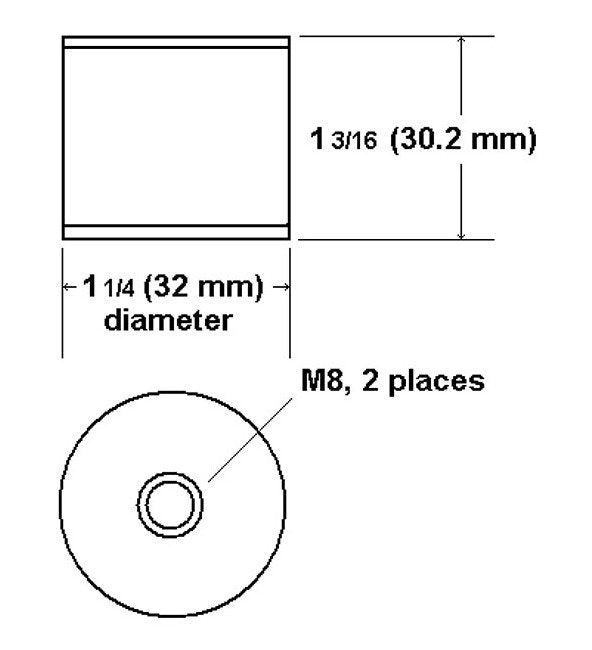

Specifications Diameter
1 3/16 in | 30 mm
Specifications Dissipation Factor
0.1% Maximum
Specifications Fh
162 kHz
Specifications Fl
119 kHz
Specifications Fmax
1000 kHz
Specifications Height
1 1/8 in | 29 mm
Specifications Imax Rms
175 A
Specifications Operating Temperature
Up to +90 ºC
Specifications Smax
120 kV·A
Specifications Stray Inductance
Less than 5 nH
Specifications Vmax Rms
800 V
Specifications Weight
0.15 kg | 0.33 lb
