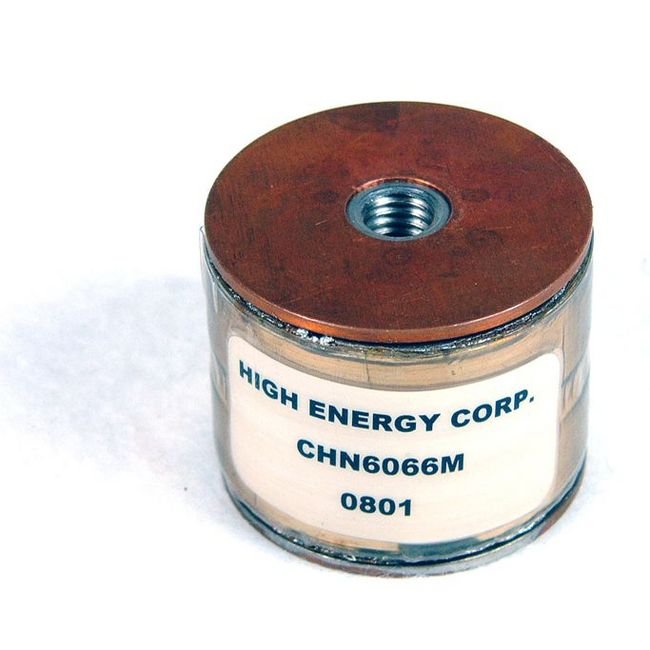

CHN6 Series Metallized Film Capacitors - High Voltage Conduction-Cooled Capacitors
CHN6 Series Metallized Film Capacitors - High Voltage Conduction-Cooled Capacitors
SKU:MET-c6a1c6
High voltage conduction-cooled capacitors with up to 1000 VRMS Working Voltage, ideal for high-power applications. Compact, efficient design.
Regular price
$49.99
Regular price
Sale price
$49.99
Unit price
per
Initiate Order
CHN6 Series Metallized Film Capacitors - High Voltage Conduction-Cooled Capacitors
$49.99
Quantity: 1
Claim Your Seller Account
CHN6 Series Metallized Film Capacitors - High Voltage Conduction-Cooled Capacitors
$49.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.
The CHN6 Series Metallized Film Capacitors feature a remarkable up to 1000 VRMS Working Voltage, ensuring robust performance in demanding applications. With a maximum power handling capacity of 120 kVA and an impressive 125 ARMS Max Current tolerance, these capacitors are designed for high-power conduction-cooled setups. Operating at temperatures of up to +90 ºC, they maintain stability under challenging conditions. This series also boasts superior cooling efficiency through conduction-cooling by bus bars, minimizing dissipation factor to just 0.1% maximum. With a compact design of 1 3/16 Inches diameter and 1 1/8 Inches height, weighing only 0.15 kg, these capacitors offer reliability and performance in a small package.
Product Specifications
Specifications Capacitance Tolerance
±10% Standard
Specifications Cooling Method
Conduction-cooled by bus bars
Specifications Diameter
1 3/16 in | 30 mm
Specifications Dissipation Factor
0.1% Maximum
Specifications Height
1 1/8 in | 29 mm
Specifications Operating Temperature
Up to +90 ºC
Specifications Stray Inductance
Less than 5 nH
Specifications Weight
0.15 kg | 0.33 lb
