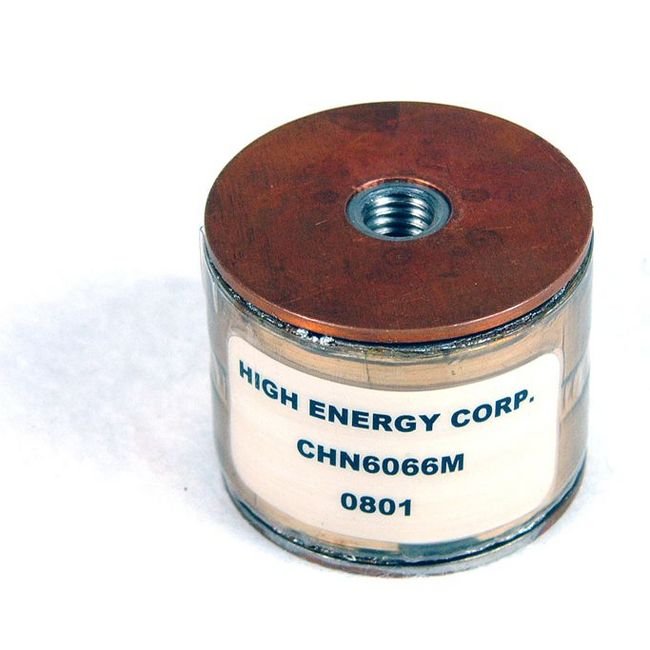

The CHN6 Series Metallized Film Capacitors are engineered for robust performance in high-voltage applications, offering a capacitance range from 0.025 to 1.2 µF with a VMAX (RMS) of 800 V. With a maximum power rating of 120 kV·A and a maximum current of 150 A, these capacitors excel in demanding environments. Designed to withstand temperatures up to +90 ºC and conduction-cooled by bus bars, they ensure reliable operation under challenging conditions. The low dissipation factor of 0.1% and minimal stray inductance make them ideal for precision electronic systems seeking efficiency and stability.
Product Specifications
Specifications Cap
0.17 µF
Specifications Capacitance Range
0.025 to 1.2 µF
Specifications Capacitance Tolerance
±10% Standard
Specifications Cooling Method
Conduction-cooled by bus bars

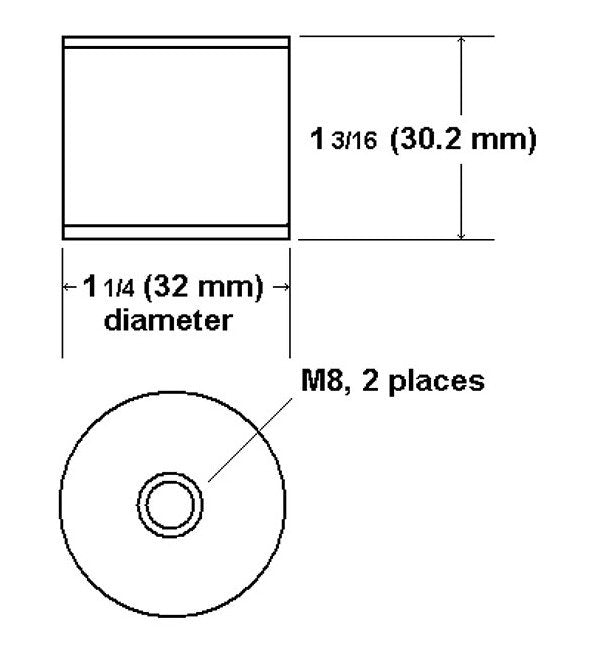

Specifications Diameter
1 3/16 in | 30 mm
Specifications Dissipation Factor
0.1% Maximum
Specifications Fh
175 kHz
Specifications Fl
175 kHz
Specifications Fmax
1000 kHz
Specifications Height
1 1/8 in | 29 mm
Specifications Imax Rms
150 A
Specifications Operating Temperature
Up to +90 ºC
Specifications Smax
120 kV·A
Specifications Stray Inductance
Less than 5 nH
Specifications Vmax Rms
800 V
Specifications Weight
0.15 kg | 0.33 lb
