Chromoly Steel Heavy Duty Rod Ends
Chromoly Steel Heavy Duty Rod Ends
SKU:ROD-3e0365
Premium Chromoly Steel Rod Ends for automotive and industrial applications. High-quality materials ensure durability and performance.
Regular price
$49.99
Regular price
Sale price
$49.99
Unit price
per
Initiate Order
Chromoly Steel Heavy Duty Rod Ends
$49.99
Quantity: 1
Claim Your Seller Account
Chromoly Steel Heavy Duty Rod Ends
$49.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.
Experience superior performance and durability with our Chromoly Steel Heavy Duty Rod Ends. Crafted from 6061-T6 Aluminum body material and 52100 Bearing Steel ball material, heat treated for HRC58-64 hardness, these rod ends are ideal for automotive vehicles, industrial machines, and various industries. With precise dimensions and a static radial load capacity of 17,955 lbs, our rod ends ensure reliable and long-lasting functionality. Each variant is meticulously engineered for quality and performance, meeting stringent industry standards.
Ready to Grow Without Cash Flow Constraints?

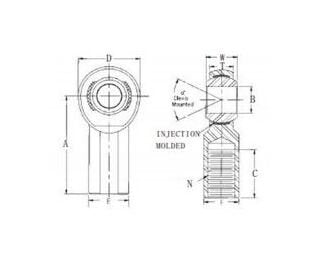

Product Specifications
Specifications Approx Weight
0.45 lbs
Specifications A Length 0015 0015
2.500 in
Specifications A Mis Angle Ref
16
Specifications Ball
1.125 in
Specifications Ball Material
52100 Bearing Steel, Heat Treated Hrc58-64 Hard Chrome Plated
Specifications Body Material
Chromoly Steel, Heat Treated Hard Chrome Plated
Specifications B Dia 00025 00005
0.6250 in
Specifications C Length 0062 0031
1.500 in
Specifications D Dia 0010 0010
1.500 in
Specifications N Thread Unf 3a
5/8-18
Specifications Race Material
Nylon (Teflon®/Kevlar®)
Specifications Rod End Variants
RECSR-10
Specifications Static Radial Load
17,955 lbs
Specifications Thread Type
Left
Specifications Type
Female
Specifications T Width
0.562 in
Specifications Warning
Prop 65 Warning: This product may contain chemicals known to the State of California to cause cancer, and birth defects or other reproductive harm.
Specifications W Width 0005 0005
0.750 in
