Chromoly Steel Heavy Duty Rod Ends - XM/XF Series
Chromoly Steel Heavy Duty Rod Ends - XM/XF Series
SKU:ROD-6bae9d
Durable Chromoly Steel Heavy Duty Rod Ends for automotive and industrial applications. Superior strength with hard chrome plating.
Regular price
$34.99
Regular price
Sale price
$34.99
Unit price
per
Initiate Order
Chromoly Steel Heavy Duty Rod Ends - XM/XF Series
$34.99
Quantity: 1
Claim Your Seller Account
Chromoly Steel Heavy Duty Rod Ends - XM/XF Series
$34.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.
The Chromoly Steel Heavy Duty Rod Ends in the XM/XF series are designed for extreme durability and performance in automotive vehicles, industrial machines, and various industries. Crafted with precision from 6061-T6 Aluminum and 52100 Bearing Steel, these rod ends are heat treated for superior strength. With features like hard chrome plating, male/female variants, and left/right options, these rod ends ensure reliable articulation and load-bearing capabilities. Ideal for heavy-duty applications, these rod ends meet stringent industry standards for quality and reliability.

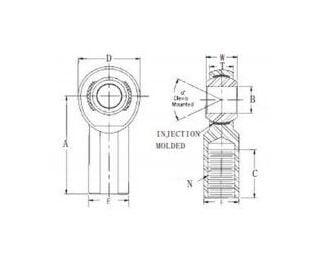

Product Specifications
Specifications Approx Weight
0.69 lbs
Specifications A Length 0015 0015
2.875 in
Specifications A Mis Angle Ref
14
Specifications Ball
1.312 in
Specifications Ball Material
52100 Bearing Steel, Heat Treated Hrc58-64 Hard Chrome Plated
Specifications Body Material
Chromoly Steel, Heat Treated Hard Chrome Plated
Specifications B Dia 00025 00005
0.7500 in
Specifications C Length 0062 0031
1.750 in
Specifications D Dia 0010 0010
1.750 in
Specifications N Thread Unf 3a
3/4-16
Specifications Race Material
Nylon (Teflon®/Kevlar®)
Specifications Rod End Variants
RECSR-12
Specifications Static Radial Load
23,031 lbs
Specifications Thread Type
Left
Specifications Type
Female
Specifications T Width
0.687 in
Specifications Warning
Prop 65 Warning: This product may contain chemicals known to the State of California to cause cancer, and birth defects or other reproductive harm.
Specifications W Width 0005 0005
0.875 in
