Chromoly Steel Rod Ends
Chromoly Steel Rod Ends
SKU:ROD-1614d2
High-performance Chromoly Steel Rod Ends for automotive and industrial applications. Male/Female, Left/Right variants. Superior strength and load capacity.
Regular price
$32.99
Regular price
Sale price
$32.99
Unit price
per
Initiate Order
Chromoly Steel Rod Ends
$32.99
Quantity: 1
Claim Your Seller Account
Chromoly Steel Rod Ends
$32.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.
Enhance your automotive and industrial applications with our XM/XF Rod Ends. Crafted from high-grade 6061-T6 Aluminum body material and 52100 Bearing Steel ball material, heat treated for superior performance. Featuring Male/Female and Left/Right variants, designed for heavy-duty usage and compatibility with various systems. With precise dimensions and exceptional load capacity, these rod ends offer reliable functionality across industries.

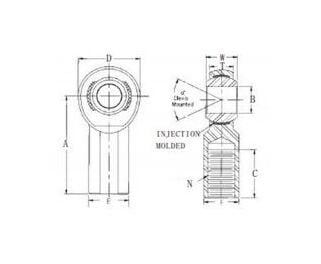

Product Specifications
Specifications Approx Weight
0.09 lbs
Specifications A Length 0015 0015
1.375 in
Specifications A Mis Angle Ref
14
Specifications Ball
0.625 in
Specifications Ball Material
52100 Bearing Steel, Heat Treated Hrc58-64 Hard Chrome Plated
Specifications Body Material
Chromoly Steel, Heat Treated Hard Chrome Plated
Specifications B Dia 00025 00005
0.3125 in
Specifications C Length 0062 0031
0.750 in
Specifications D Dia 0010 0010
0.875 in
Specifications N Thread Unf 3a
5/16-24
Specifications Race Material
Nylon (Teflon®/Kevlar®)
Specifications Rod End Variants
RECSR-5
Specifications Static Radial Load
7,639 lbs
Specifications Thread Type
Left
Specifications Type
Female
Specifications T Width
0.344 in
Specifications Warning
Prop 65 Warning: This product may contain chemicals known to the State of California to cause cancer, and birth defects or other reproductive harm.
Specifications W Width 0005 0005
0.437 in
