Chromoly Steel Rod Ends - Automotive & Industrial Grade
Chromoly Steel Rod Ends - Automotive & Industrial Grade
SKU:ROD-7bd8d8
Enhance automotive & industrial machinery with durable Chromoly Steel Rod Ends. Heat-treated for performance & corrosion resistance. Meets industry standards.
Regular price
$49.99
Regular price
Sale price
$49.99
Unit price
per
Initiate Order
Chromoly Steel Rod Ends - Automotive & Industrial Grade
$49.99
Quantity: 1
Claim Your Seller Account
Chromoly Steel Rod Ends - Automotive & Industrial Grade
$49.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.
Upgrade your automotive and industrial machinery with our Chromoly Steel Rod Ends. Crafted from heat-treated Chromoly Steel and 52100 Bearing Steel, these rod ends offer exceptional durability and performance. The black oxide coating ensures corrosion resistance while the PTFE lining reduces friction. With precise dimensions and thread type options, these rod ends are suitable for a wide range of applications, meeting rigorous industry standards for quality and reliability.

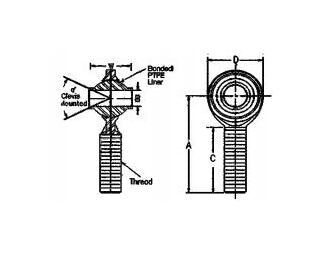

Product Specifications
Specifications Approx Weight
0.51 lbs
Specifications A Length 0015 0015
2.875 in
Specifications A Mis Angle Ref
64
Specifications Ball Material
52100 Bearing Steel, Heat Treated Hrc58-64 Hard Chrome Plated
Specifications Body Material
Chromoly Steel, Heat Treated, Black Oxide Coated
Specifications B Dia 00025 00005
0.6250 in
Specifications C Length 0062 0031
1.750 in
Specifications D Dia 0010 0010
1.750 in
Specifications Liner Material
Ptfe Lined Optional, Add "T" To Suffix
Specifications N Thread Unf 3a
5/8-18
Specifications Rod End Variants
RECM-10T
Specifications Static Radial Load
21,219 lbs
Specifications Thread Type
Right
Specifications Type
Male
Specifications Warning
Prop 65 Warning: This product may contain chemicals known to the State of California to cause cancer, and birth defects or other reproductive harm.
Specifications W Width 0005 0005
1.375 in
