Chromoly Steel Rod Ends - Automotive & Industrial Grade
Chromoly Steel Rod Ends - Automotive & Industrial Grade
SKU:ROD-dab5d5
Premium Chromoly Steel Rod Ends for automotive & industrial applications. Precision engineered for durability & strength.
Regular price
$34.99
Regular price
Sale price
$34.99
Unit price
per
Initiate Order
Chromoly Steel Rod Ends - Automotive & Industrial Grade
$34.99
Quantity: 1
Claim Your Seller Account
Chromoly Steel Rod Ends - Automotive & Industrial Grade
$34.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.
Enhance your automotive and industrial machinery with our Chromoly Steel Rod Ends. Crafted from premium Chromoly Steel and featuring 52100 Bearing Steel balls, these rod ends offer exceptional strength and durability. Heat treated and black oxide coated for added resilience. Suitable for applications requiring precise movement and robust support. Threaded to UNF 3A standards with a Prop 65 Warning. Upgrade your equipment with reliability and performance.

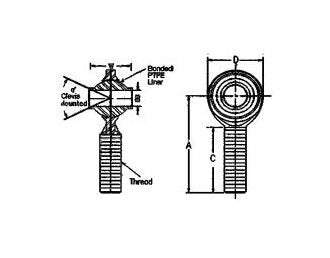

Product Specifications
Specifications Approx Weight
0.33 lbs
Specifications A Length 0015 0015
2.625 in
Specifications A Mis Angle Ref
65
Specifications Ball Material
52100 Bearing Steel, Heat Treated Hrc58-64 Hard Chrome Plated
Specifications Body Material
Chromoly Steel, Heat Treated, Black Oxide Coated
Specifications B Dia 00025 00005
0.5000 in
Specifications C Length 0062 0031
1.625 in
Specifications D Dia 0010 0010
1.500 in
Specifications Liner Material
Ptfe Lined Optional, Add "T" To Suffix
Specifications N Thread Unf 3a
1/2-20
Specifications Rod End Variants
RECM-8T
Specifications Static Radial Load
16,240 lbs
Specifications Thread Type
Right
Specifications Type
Male
Specifications Warning
Prop 65 Warning: This product may contain chemicals known to the State of California to cause cancer, and birth defects or other reproductive harm.
Specifications W Width 0005 0005
1.250 in
