Chromoly Steel Rod Ends - Heavy Duty XM/XF Series
Chromoly Steel Rod Ends - Heavy Duty XM/XF Series
SKU:ROD-bc217d
High-performance Chromoly Steel Rod Ends for automotive, industrial, and more. Male/Female, Left/Right variants. Premium quality and durability.
Regular price
$29.99
Regular price
Sale price
$29.99
Unit price
per
Initiate Order
Chromoly Steel Rod Ends - Heavy Duty XM/XF Series
$29.99
Quantity: 1
Claim Your Seller Account
Chromoly Steel Rod Ends - Heavy Duty XM/XF Series
$29.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.
The Chromoly Steel Rod Ends from Monroe are engineered for heavy-duty applications in automotive vehicles, industrial machines, and various industries. Crafted from 6061-T6 aluminum body and 52100 Bearing Steel ball heat-treated to HRC58-64 with hard chrome plating, these rod ends offer exceptional durability and performance. With male/female and left/right variants, these rod ends have precise dimensions and meet stringent industry standards, ensuring reliable operation and longevity.
Ready to Grow Without Cash Flow Constraints?

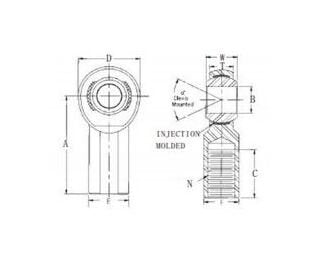

Product Specifications
Specifications Approx Weight
0.06 lbs
Specifications A Length 0015 0015
1.312 in
Specifications A Mis Angle Ref
16
Specifications Ball
0.500 in
Specifications Ball Material
52100 Bearing Steel, Heat Treated Hrc58-64 Hard Chrome Plated
Specifications Body Material
Chromoly Steel, Heat Treated Hard Chrome Plated
Specifications B Dia 00025 00005
0.2500 in
Specifications C Length 0062 0031
0.750 in
Specifications D Dia 0010 0010
0.750 in
Specifications N Thread Unf 3a
1/4-28
Specifications Race Material
Nylon (Teflon®/Kevlar®)
Specifications Rod End Variants
RECSX-4
Specifications Static Radial Load
6,190 lbs
Specifications Thread Type
Right
Specifications Type
Female
Specifications T Width
0.281 in
Specifications Warning
Prop 65 Warning: This product may contain chemicals known to the State of California to cause cancer, and birth defects or other reproductive harm.
Specifications W Width 0005 0005
0.375 in
