Chromoly Steel Rod Ends - High Strength Terminals for Automotive & Industrial Applications
Chromoly Steel Rod Ends - High Strength Terminals for Automotive & Industrial Applications
SKU:ROD-36bde9
Durable Chromoly Steel Rod Ends for automotive & industrial use. High load capacity and PTFE lining ensure reliability.
Regular price
$29.99
Regular price
Sale price
$29.99
Unit price
per
Initiate Order
Chromoly Steel Rod Ends - High Strength Terminals for Automotive & Industrial Applications
$29.99
Quantity: 1
Claim Your Seller Account
Chromoly Steel Rod Ends - High Strength Terminals for Automotive & Industrial Applications
$29.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.
Enhance the durability of your machinery with our Chromoly Steel Rod Ends. Crafted from heat-treated Chromoly Steel with Black Oxide Coating and 52100 Bearing Steel balls, these rod ends ensure exceptional performance. With a static radial load capacity of 16,240 lbs and PTFE lining for smooth operation, these versatile rod ends offer reliability in automotive, industrial, and various other applications.

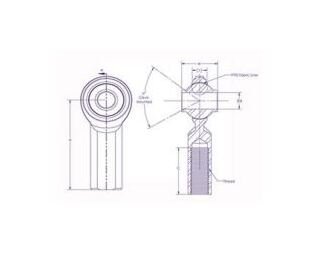

Product Specifications
Specifications Approx Weight
0.43 lbs
Specifications A Length 0015 0015
2.625 in
Specifications A Mis Angle Ref
65
Specifications Ball Material
52100 Bearing Steel, Heat Treated Hrc58-64 Hard Chrome Plated
Specifications Body Material
Chromoly Steel, Heat Treated, Black Oxide Coated
Specifications B Dia 00025 00005
0.5000 in
Specifications C Length 0062 0031
1.375 in
Specifications D Dia 0010 0010
1.500 in
Specifications Liner Material
Ptfe Lined Optional, Add "T" To Suffix
Specifications N Thread Unf 3a
1/2-20
Specifications Rod End Variants
RCHPM-8T
Specifications Static Radial Load
16,240 lbs
Specifications Thread Type
Right
Specifications Type
Female
Specifications Warning
Prop 65 Warning: This product may contain chemicals known to the State of California to cause cancer, and birth defects or other reproductive harm.
Specifications W Width 0005 0005
1.250 in
